What Are Pellet 3D Printers: From Granules to Industrial-Scale Additive Manufacturing?

You want to print large industrial parts. High costs and slow speeds hold you back. I will show you how pellet 3D printers¹ solve these exact problems.

Pellet 3D printers use raw plastic granules² instead of expensive filament. This system offers high-speed extrusion and massive cost savings for large-scale manufacturing. These machines change additive manufacturing³ from a desktop hobby into a real industrial production tool.

You might think all 3D printers work the same way. The truth is quite different. The wrong choice will waste your money and ruin your production schedule. Let us look closely at how pellet systems actually work and why they matter for your factory floor.

Pellet vs Filament 3D Printing: Speed, Cost, and Scalability Compared?

You pay too much for filament. Your large prints take weeks to finish. A pellet system fixes both the high cost and the slow speed of your production.

Filament is a standardized product with high processing costs. Pellets are raw materials. When your part size grows, material costs rise sharply. Pellet printing solves this by using cheap raw granules. This makes large-scale 3D printing economically possible for your business.

I talk to many engineers who want to scale up their production. They quickly realize that filament costs kill their budget completely. Pellet printing is not just a cheaper alternative for your factory. It is a dedicated system built specifically for large-scale manufacturing.

The Economic Model

We must look closely at the economic model of your daily production. Filament requires extra manufacturing steps before you even use it. Factories must melt raw plastic and pull it into a long wire. They put it on a spool. You pay money for all this extra work. Pellets let you skip this expensive step entirely.

Comparing the Two Systems

You choose pellets when your print volume and material costs become too high to manage. This is a pure business decision. You do not buy a pellet printer just to try something new. You buy it to make your large production runs highly profitable.

Why Pellet 3D Printing Is Faster — and Why It’s Harder to Master?

You want fast printing speeds. But fast speeds often bring bad print failures. Pellet printing gives you massive speed, but it requires much better control of your machine.

Pellet printing is faster because a screw continuously melts the plastic. You get higher extrusion flow and you use larger nozzles. But it is harder because temperature control⁴ is complex. Starting and stopping the flow is slow, and material changes cause big problems.

I remember testing our very first industrial pellet printer at CHENcan CNC. We saw amazing speeds right away on the factory floor. The continuous screw mechanism pushes a huge amount of plastic without stopping. We used a very large nozzle for our tests. We printed thick layers and built large cross-section structures very fast.

The Hidden Difficulties

But high speed brings real trouble to your process. Filament printers stop pushing plastic instantly when the motor stops. Pellet printers do not work this way. The melted plastic inside the large screw keeps flowing even when you want it to stop.

Main Technical Challenges

You must understand that material fluctuations affect your print deeply. A small change in the plastic flow creates big defects on large parts. Mastering a pellet printer means you must master the continuous plasticization process completely. It is a completely different world from basic desktop printing.

Material Freedom: Thermoplastics, Recycled Pellets, and Engineering Polymers?

You struggle to find the right materials in filament form. Custom filaments cost a fortune. Pellet systems let you use almost any plastic you want at a low price.

Pellet printing gives you total material freedom. You buy raw engineering polymers at industrial prices. You can even use recycled plastics. But this freedom means you must take full responsibility for the process control and material tuning yourself.

We see many clients who need very specific materials for their aerospace or automotive parts. Filament makers often do not sell these specific plastics. If they do sell them, the price is much too high for large production.

Raw Material Access

Pellet printing changes this strict rule. You buy the exact same raw plastic granules that injection molding factories use every day. This drops your material cost to the lowest possible level. Engineering plastic pellets are available everywhere in the world.

Sustainability and Responsibility

You can even grind up old parts and print completely new ones. This recycled potential is huge for your factory. But material freedom always comes with a price. Standard filament is easy to use because the factory tuned the settings for you. With raw pellets, you must take full responsibility. You must figure out the exact melting point and flow rate yourself.

The Hidden Challenges of Pellet 3D Printing Most Buyers Ignore?

You buy a pellet printer expecting easy profits. Then your prints fail repeatedly. Most buyers completely ignore the deep mechanical challenges of large-scale plastic extrusion.

Buyers often overlook severe moisture effects and material batch differences. Pellet machines require complex maintenance. Screw wear is a serious problem. Controlling the start and stop of the material column is difficult. The real challenge is stable plasticization, not just moving the toolhead.

Many factory owners call me when their new pellet printer fails. They think the machine moves badly along the rails. The truth is their plasticization process is highly unstable. They treat the heavy pellet machine exactly like a big desktop printer. This is a huge mistake that ruins production.

The Real Problems

The actual printing motion is the easy part. The continuous melting process is very hard to control. Every single batch of pellets behaves differently inside the machine. If your screw wears down over time, your extrusion rate changes without warning. You must check your equipment constantly.

Ignored Maintenance Areas

You must control the heavy material column inside the extruder. If you fail to manage the start and stop of the flow, your final part will have ugly gaps and weak spots. You must respect the deep complexity of real industrial plastic processing.

Moisture Control, Screw Extrusion, and Bead Consistency Explained?

Your large prints crack and break easily. You blame the plastic material. The real cause is usually poor moisture control⁵ and bad extrusion rhythm in your machine.

You must dry your pellets perfectly before printing. The screw must melt the plastic uniformly. You must control the exact rhythm of the extrusion. Consistent beads determine the structural strength of your part. Bead consistency is far more important than how the surface looks.

I always tell our new engineers to watch the hot plastic bead as it leaves the nozzle. The bead is the thick line of plastic that builds your solid part. If this bead changes size during the print, your part will eventually fail.

The Importance of Drying

Water is the absolute enemy of plastic. Even a tiny amount of moisture will turn to steam inside the hot screw. This steam creates small invisible bubbles inside your bead. These bubbles destroy the internal strength of your part. You must use a professional industrial dryer before you print.

Screw and Bead Mechanics

Your screw must mix and melt the plastic with perfect uniformity. If the temperature changes, the bead size changes immediately. A consistent bead locks the thick layers together tightly. You do not care about a shiny surface on a large industrial mold. You only care about raw structural strength.

Print Quality in Pellet 3D Printers: Layer Adhesion, Strength, and Accuracy?

You want perfectly smooth parts from a giant printer. You will be disappointed. Pellet printing focuses on massive strength and fast builds, not tiny visual details.

Good print quality in pellet systems means strong layer fusion and high cross-section density. You must control heat build-up and manage plastic shrinkage. In large-scale industrial applications, overall structural stability is always more important than perfect surface precision.

When new clients visit our CHENcan CNC factory, they touch the large 3D printed molds. They always notice the thick layer lines on the surface. I explain that these visible lines are absolutely necessary for strength. We push a massive amount of hot plastic very fast to build these parts.

Heat and Shrinkage

This massive amount of hot plastic creates a brand new problem. Heat builds up quickly inside the part. If you print too fast, the part stays soft and collapses under its own weight. If you print too slow, the layers get cold and do not stick together. As the huge part cools down, the plastic shrinks. You must compensate for this natural shrinkage in your slicing software.

Quality Metrics

You must focus entirely on getting solid, dense cross-sections. A large mold must handle heavy pressure during use. Surface accuracy does not matter at all if the part breaks in half. You build for pure stability first.

When Pellet 3D Printers Make Sense — and When They Don’t?

You think a pellet printer can make everything in your factory. You are wrong. Choosing this technology for the wrong parts will waste your time and money.

Pellet printing is perfect for large volume parts, low-cost structural pieces, molds, and exhibition structures. It is completely wrong for tiny precision parts, high-detail art models, or medical micro-structures. You base this choice on production volume and material costs.

I decline orders from customers who want to print small jewelry with our industrial pellet printers. The machine simply cannot do it well. You must understand exactly where this specific technology fits in your daily business.

The Right Applications

We build 5-Axis Machining Centers and large industrial 3D printers. We know that physical size matters greatly. If your part is larger than a chair, pellet printing makes total sense. If you need a massive mold for a boat hull, pellet printing is absolutely the best choice.

Making the Choice

You do not buy a pellet printer for a single performance metric like beautiful surface finish. You choose it because your factory needs to produce massive volumes of plastic quickly and cheaply. It is a strict scale-driven decision for your business.

Real-World Applications: Large Parts, Tooling, and Near-Net Shape Manufacturing?

You spend months waiting for expensive metal molds to arrive. Your competitors deliver products faster. Pellet printing changes how you create value on the factory floor.

Pellet printing replaces traditional molds and shortens your delivery times. It reduces material waste and supports custom production. The real value is near-net shape manufacturing. You print the rough shape quickly and use a CNC machine to finish it. This reduces your post-processing time.

Many of our best clients at CHENcan CNC build large yachts and giant wind turbine blades. In the past, they carved massive molds from huge blocks of expensive material. They wasted tons of material and spent many weeks on a single simple job.

Creating Real Value

Now, they use our industrial 3D printers. They do not just print parts. They change their entire value creation process completely. They print a large mold in just two days. This new speed supports fast, highly customized production.

The Near-Net Shape Strategy

You must understand the powerful concept of near-net shape manufacturing. You do not print a perfect final part. You print a rough part that is very close to the final shape. Then, you use a CNC router to machine the outer surface smooth. You do not eliminate post-processing entirely. You simply reduce the heavy machining time from days to hours.

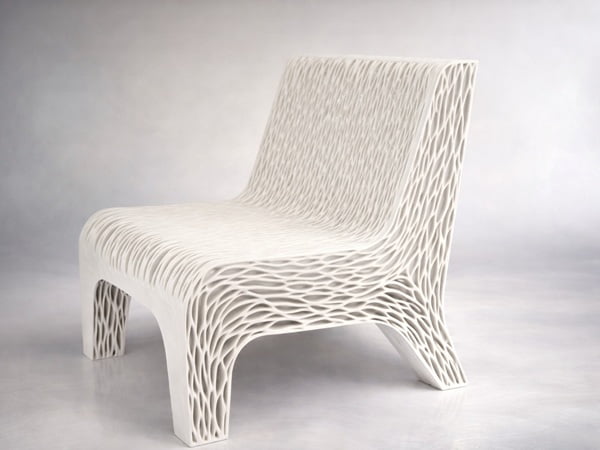

The Future of Pellet-Based Additive Manufacturing?

You wonder if pellet printing is just a passing trend. It is not. This technology represents the future of large-scale, heavy-duty industrial manufacturing.

The future brings high automation, stable screw systems, and multi-material printing. We will see more hybrid machines that combine pellet extrusion with CNC milling. Pellet additive manufacturing is not an upgrade to desktop printing. It is a direct return to industrial plastic processing logic.

I look at the future of our manufacturing industry with great confidence. The machines will become much smarter very soon. We are already developing new systems with better automation and deeper software integration.

Better Hardware and Hybrids

Smart engineers are designing more stable screw systems to handle different complex plastics easily. Soon, machines will mix multiple different materials in the exact same print. The biggest jump will be true hybrid manufacturing. You will have a single machine that prints the hot plastic and cuts it smooth in the exact same workspace.

The Industrial Shift

You must stop thinking of pellet 3D printers as large desktop gadgets. They are heavy industrial machines. They follow the strict, proven logic of traditional plastic processing. As modern factories demand faster, cheaper ways to build massive structures, pellet systems will become standard equipment on every single production floor.

Conclusion

Pellet 3D printers transform large-scale production by using raw materials for faster, cheaper output. You must master the plasticization process to truly benefit from this powerful industrial manufacturing technology.
