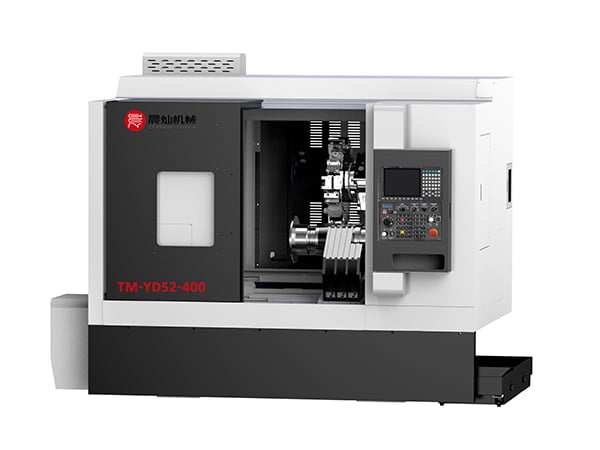

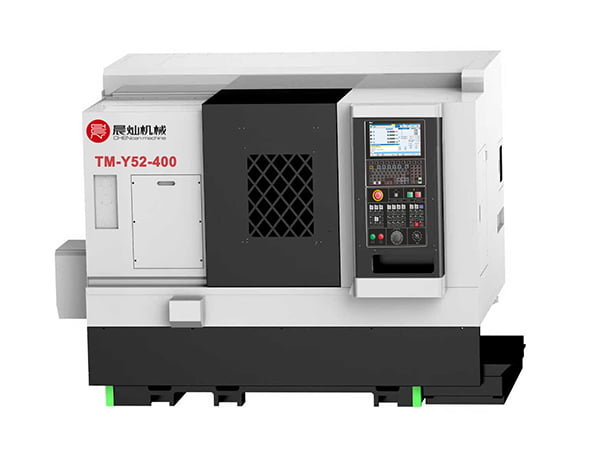

The Turn-Mill Compound Machining Center is a high-efficiency CNC solution that integrates turning, milling, drilling and tapping into a single machine.
Also commonly referred to as a mill turn CNC machine or turning and milling machining center, it is designed to complete complex metal parts in one setup, significantly reducing processing time and improving machining accuracy.
This machine is ideal for manufacturers seeking higher productivity, better precision and lower setup costs in metal component production.
Key Features of Turn-Mill Compound Machining Center
1. The machine integrates turning and milling functions, allowing complex parts to be completed in one setup, reducing positioning errors and improving overall accuracy.
2. Designed for metal cutting, the machine features a rigid structure that ensures stability during heavy-duty turning and milling operations.
3. Multiple processes such as turning, milling, drilling and tapping can be performed with high precision, even on complex parts.
4. By combining multiple machining processes into one machine, production efficiency is significantly improved while labor and setup time are reduced.
5. Optimized for machining aluminum, steel and alloy materials, the machine delivers stable performance under demanding cutting conditions.
6. Compared to separate turning and milling machines, the turn-mill machining center saves floor space while increasing output.
Technical Parameter of Turn-Mill Compound Machining Center
| Project | Item | Value |
| Working Travel | Maximum Slewing Diameter | Φ650mm |
| Maximum Machining Length | 420mm | |
| Maximum Machining Diameter | 400mm | |
| Table Center Height | 80 | |
| Spindle | Spindle Structure | Belt Type Spindle |
| Maximum Spindle Speed | 4000rpm | |
| Spindle Power | 11KW | |
| Spindle Torque | 105Nm | |
| Spindle Nose Type | A2-6 | |
| Spindle Through Hole | Φ66mm | |
| Allowable Bar Stock Through Diameter | Φ52mm | |
| Spindle Front Diameter | Φ100mm | |
| Chuck Specifications | 8inch | |
| Spindle Belt Tooth Profile | 8YU | |
| Axis Parameter | X-Axis Travel | 350mm |
| Y-Axis Travel | ±50mm | |
| Z-Axis Travel | 450mm | |
| X/Y-Axis Leadscrew | 3210 | |
| Z-Axis Leadscrew | 3210 | |
| Three-Linear Rail | H35 | |
| X/Z Positioning Accuracy | 0.005mm | |
| X/Z Repeatability | 0.003mm | |
| Turret | Type | 15-Position Hydraulic Turret |
| Tool Size | BMT45 | |
| Turret Power Motor | 3.1KW/5000rpm | |
| Turret Station Drive Motor Power | 1KW | |
| Adjacent Tool Change and Locking Time | 0.06S | |
| Tailstock | Tailstock Sleeve Diameter | Φ68 |
| Tailstock Travel | 400mm | |
| Tailstock Sleeve Taper | MT5 | |
| Tailstock Linear Rail | H30 | |
| Tailstock Movement Method | Hydraulic Type | |
| Speed | Rapid Traverse Speed (X/Z) | 28/28 m/min |
| Servo Motor Power (X/Z/Y) | 2.3/2.3/2.3 KW | |
| Servo Motor Torque (X/Z/Y) | 14.6/14.6/14.6 Nm | |
| Machine | Total Power | 40KVA |
| Machine Dimension | 2750×1880×2100mm | |
| Machine Weight | 4.5T |

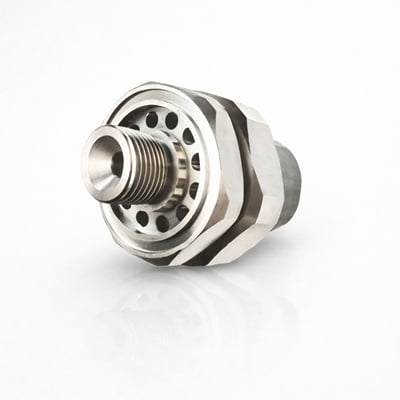

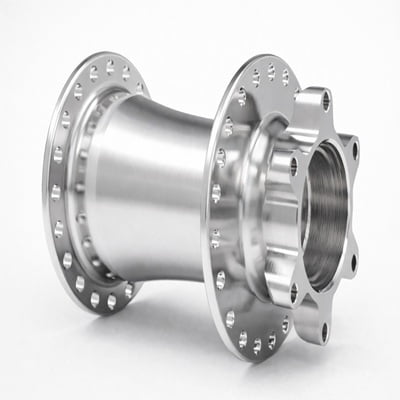

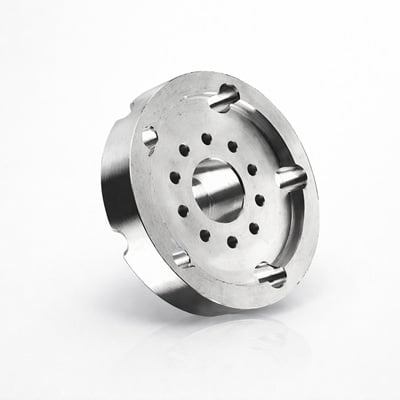

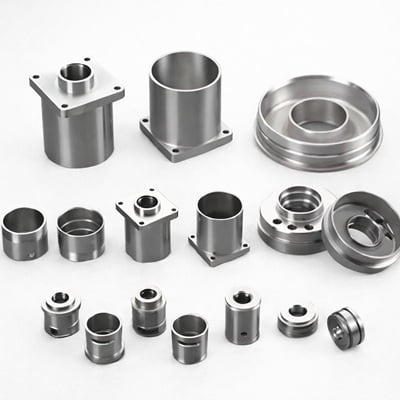

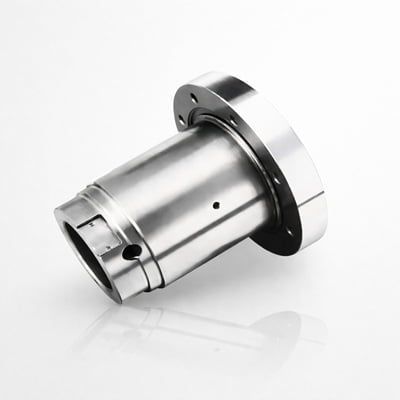

Applications of the turn-mill compound machining center
Which be widely used for machining rotational and complex metal parts, including:

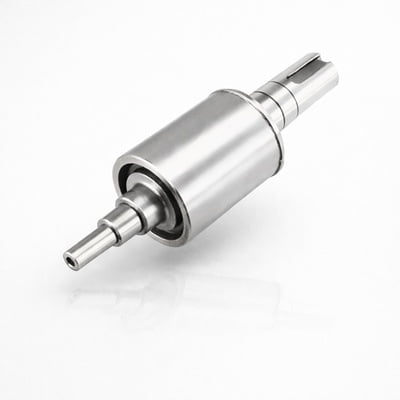

1. Shafts and cylindrical components.
2. Automotive transmission parts.
3. Aerospace rotational parts.
4. Energy and oil & gas components.
5. Precision mechanical parts.
6. Custom metal components with multiple features.
It is especially suitable for parts requiring turning and milling operations in a single clamping.
Why Choose a Turn-Mill Compound Machining Center?
1. The turn-mill compound machining center offers a smart solution for manufacturers aiming to simplify workflows, reduce errors and improve productivity.
2. By completing complex parts in one machine, it delivers better consistency, shorter cycle times and higher overall machining efficiency.
FAQ – Turn-Mill Compound Machining Center
Q1: What is a turn-mill compound machining center?
It is a CNC machine that combines turning and milling functions, allowing multiple machining processes to be completed in a single setup.
Q2: What materials can this machine process?
The machine is suitable for metal materials such as aluminum, aluminum alloys, steel, stainless steel and alloy steel.
Q3: What are the main advantages of a mill turn CNC machine?
Key advantages include reduced setup time, improved accuracy, higher efficiency and the ability to machine complex parts in one clamping.
Q4: Is this machine suitable for complex parts?
Yes. It is ideal for parts that require both rotational machining and milling features such as slots, holes and complex contours.
Q5: Which industries commonly use turn-mill machining centers?
Typical industries include automotive manufacturing, aerospace, energy equipment, oil & gas and precision engineering.
Q6: Can this machine replace multiple traditional machines?
Yes. A turn-mill compound machining center can replace separate CNC lathes and machining centers, reducing equipment investment and floor space.
