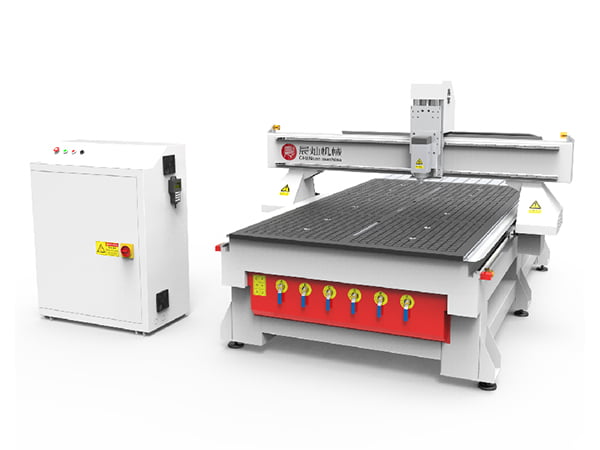

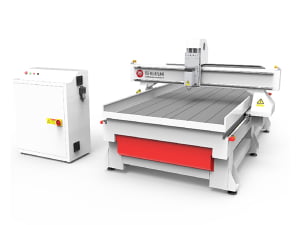

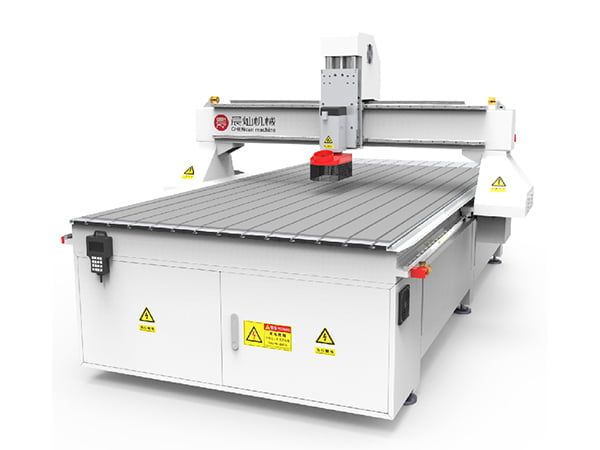

The Standard 3-Axis CNC Router is the most popular and practical CNC router model, widely used in woodworking, advertising, furniture manufacturing and general non-metal processing.
Known for its stable structure, easy operation and excellent cost-performance ratio, this machine is often the first choice for workshops and manufacturers entering CNC routing.
As a classic 3-axis CNC router machine, it offers reliable performance for cutting, engraving, drilling and carving tasks.
Key Features of Woodworking CNC Router
1. Stable Machine Structure: The machine frame is made of thick-walled square steel tubes with welded construction, providing excellent rigidity and vibration resistance for long-term stable operation.
2. Rack and Pinion Drive on X/Y Axis: X and Y axes adopt high-speed rack and pinion transmission, ensuring fast movement, high efficiency and smooth operation.
3. Ball Screw Drive on Z Axis: The Z axis uses a high-precision ball screw, delivering accurate vertical positioning and stable cutting depth control.
4. Imported Linear Square Guide Rails: High-quality imported square linear guide rails ensure high load capacity, smooth motion and long service life.
5. User-Friendly Control System: Equipped with NK05G2 or DSP control system, the machine is easy to learn and operate, making it suitable for beginners and small workshops.
6. Vacuum Table for Fast Workpiece Fixing: The vacuum adsorption table allows quick and stable fixing of workpieces, improving efficiency and surface quality.
7. Flexible Spindle Options: Available with 3.5 kW to 9 kW spindles, allowing users to choose the most suitable configuration based on material and application requirements.
Technical Parameter of 3-axis CNC Router:
| Item | Value |
|---|---|
| Lathe structure | Strong heavy Seamless welded steel structure |
| XY Structure | Rack and pinion transmission,Taiwan square Guide rail |
| Z Structure | Taiwan Ball screw, Taiwan square Guide rail |
| Spindle | 3.5Kw-9KW air cool spindle |
| Spindle speed | 0-18000mm/min, variable speed |
| Max. Idling Speed | 35m/min |
| Diameter of cutter | 3.175mm-12.7mm |
| Inverter | 5.5kw |
| Motor and Driver | China Easy servo Motor and Driver |
| Control System | Weihong NK105G2 controller |
| Worktable | Aluminum T Slot Table |
| Cable | Germany Igus Cable |
| Command | G code (HPGL,U00,mmg,plt) |
| Software | Artcam,Type3,Wentai |
| Oil Injection | Manual |
| Working Voltage | AC220V/AC380V |
Applications of standard CNC router is suitable for a wide range of industries and applications:
1. Woodworking and furniture manufacturing.
2. Advertising and sign making.
3. Decoration and interior design.
4. Exhibition and display production.
5. Craft and gift processing.
6. General non-metal material machining.
Why Choose This Standard 3-Axis CNC Router?
1. This CNC router machine combines reliable performance, simple operation and flexible configuration, making it one of the best-selling and most widely used CNC routers on the market.
2. Whether for small workshops or batch production, it provides a practical and economical solution for non-metal processing.
FAQ – Standard 3-Axis CNC Router
Q1: What materials can this CNC router process?
This machine is suitable for wood, MDF, plywood, acrylic, PVC, plastic boards and other non-metal materials.
Q2: Is this CNC router suitable for beginners?
Yes. With the NK05G2 or DSP control system, the machine is easy to learn and operate, making it ideal for beginners and first-time CNC users.
Q3: What industries commonly use this 3-axis CNC router?
It is widely used in woodworking, furniture manufacturing, advertising, decoration, exhibition display and craft industries.
Q4: What spindle power options are available?
The machine supports spindle power options from 3.5 kW to 6 kW, depending on cutting requirements and materials.
Q5: What is the advantage of a vacuum table?
The vacuum table allows fast and stable workpiece fixing, reducing setup time and improving machining efficiency and surface quality.
Q6: Can this CNC router be customized?
Yes. Table size, spindle power and other configurations can be customized according to customer requirements.
