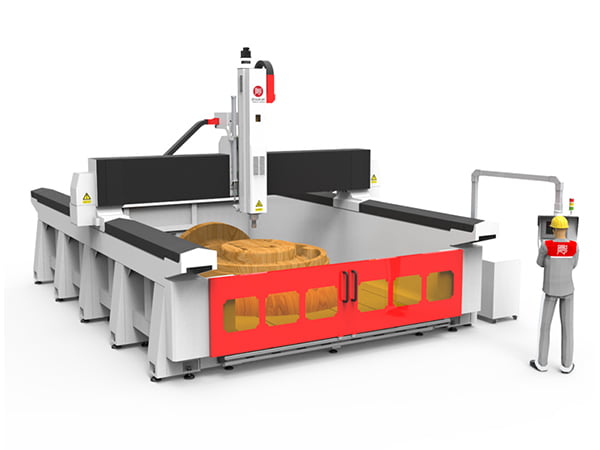

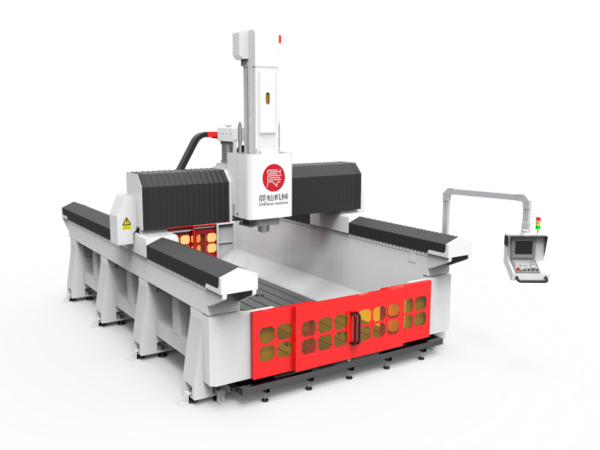

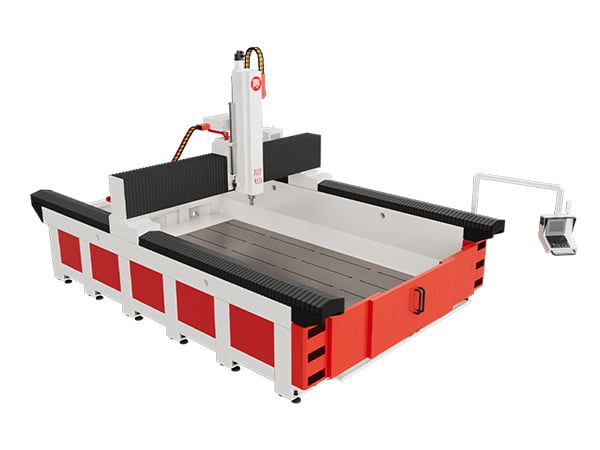

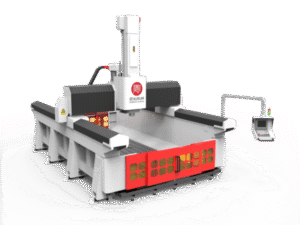

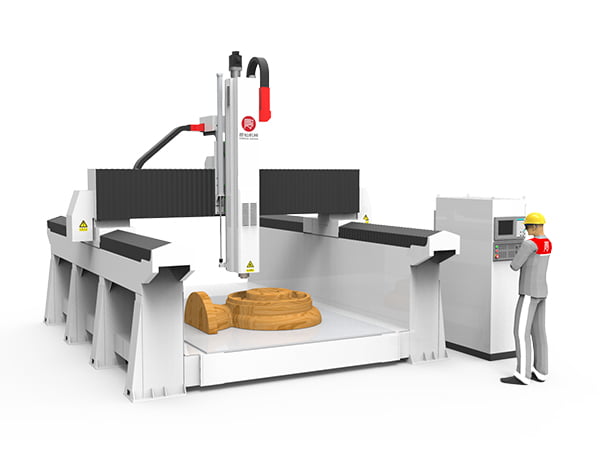

The SF Series Mold Machining Center is a heavy-duty gantry mold machining center designed for high-precision non-metal mold making.
This serier cnc machine is optimized for hard non-metal materials, such as solid wood, tooling board, composite materials and so on, where surface finish and dimensional accuracy are critical.
With an optional tool cooling system, the SF Series can also machine aluminum alloy and certain steel components, making it a versatile CNC router solution for complex mold and sculpture manufacturing.
Key Features of SF Series Gantry CNC Router:
1. Optimized for Hard Non-Metal Materials: Designed for machining solid wood, tooling board and composite materials, delivering excellent surface quality for precision mold and sculpture applications.
2. High-Torque BT40 Mechanical Spindle: Equipped with a BT40 high-torque mechanical spindle, capable of stable cutting even when wooden molds contain steel nails, without spindle damage, speed reduction or tool removal.
3. No Need to Remove Steel Nails in Wood Molds: A major advantage for wood mold manufacturing—the machine can cut through wood molds with embedded steel nails, significantly improving efficiency and reducing preparation time.
4. Rigid Gantry Structure & Stable Machine Bed: High-quality mechanical design ensures excellent bed rigidity, long-term accuracy retention and extended machine service life.
5. Self-Developed Transmission System: All three axes adopt high-precision ball screw transmission, providing high speed, high accuracy and easy maintenance, ideal for long-term mold production.
Technical Specification of SF Gantry Machining Center
| Project | Item | Value |
| Spindle | Spindle Type | Mechanical Spindle BT40 |
| Spindle Motor Power | 5.5Kw | |
| Max. Speed | 10000rpm | |
| Max. Tool Diameter | 32mm | |
| Max. Tool Length | 300mm | |
| Control System | China HNC CNC Controllor | Optional: Syntec / Siemens / Fanuc / Mitsubishi |
| China HNC Servo System | Match with controllor | |
| Speed | Max. Working Speed (XYZ /min) | 30m/30m/15m |
| Max. Rapid Speed (XYZ /min) | 55m/55m/20m | |
| Accuracy | Positioning Accuracy (XYZ mm/m) | 0.08/0.06/0.04mm |
| Repeatabiliy Accuracy (XYZ mm/m) | 0.07/0.05/0.03mm | |
| Others | Air Pressure | 0.6-0.8 kgf/cm2 |
| Total Power | 18KVA | |
| Voltage | 220V 3P / 380V 3P |
Why Choose SF Series Mold Machining Center?
1. The SF Series is a classic and proven gantry CNC router for non-metal mold making.
2. Its high-torque spindle, rigid structure and precision transmission system make it especially suitable for wood mold manufacturing and foundry mold production, where durability, accuracy and surface quality are required.
3. Thanks to its reliability and wide application range, the SF Series has become one of the best-selling gantry mold machining centers in the non-metal mold industry.
FAQ – SF Series Gantry Mold Machining Center
Q1: What makes the SF Series suitable for wood mold manufacturing?

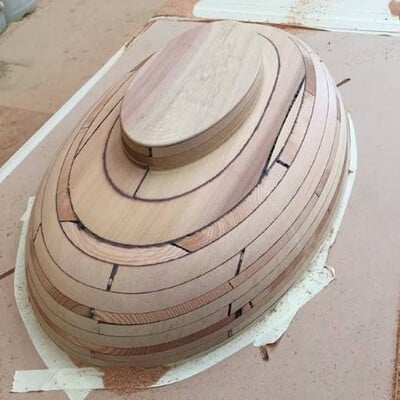

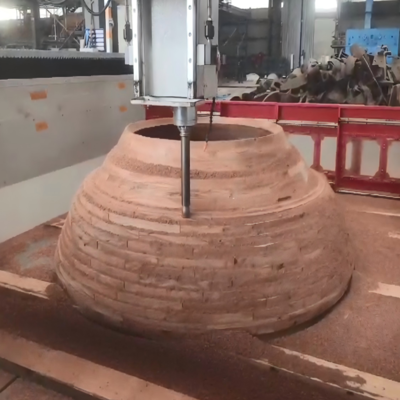

The SF Series gantry CNC router is specially designed for wood mold manufacturing, featuring a high-torque BT40 mechanical spindle.
It can machine solid wood molds containing steel nails without removing them, without spindle damage or speed reduction, significantly improving production efficiency.
Q2: Can the SF Series CNC router machine foundry molds?

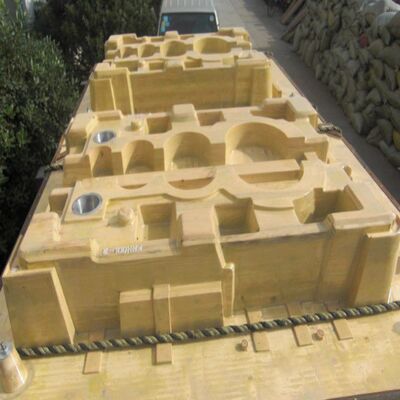

Yes. The SF Series is widely used as a foundry mold machining center, including sand molds, lost foam molds and wooden patterns, where high rigidity and stable precision are required.
Q3: Is the SF Series suitable for high surface finish mold machining?
Yes. Thanks to its rigid gantry structure, high-precision ball screw transmission and high-torque mechanical spindle, the SF Series delivers excellent surface finish for precision non-metal mold and sculpture machining.
Q4: Can this gantry CNC router machine aluminum or steel?

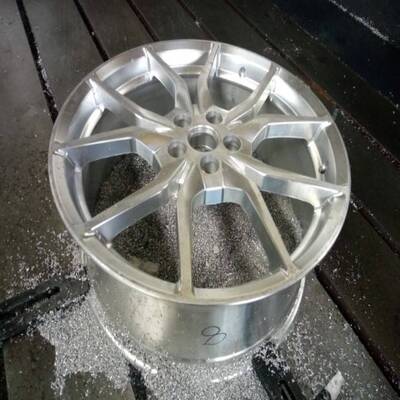

With an optional tool cooling system, the SF Series can machine aluminum alloy and certain steel materials in light-duty operations.
It is primarily optimized for hard non-metal materials, rather than heavy metal cutting.
Q5: Why choose a mechanical spindle instead of a motorized spindle for wood molds?
A mechanical spindle provides higher torque at lower speeds, making it more suitable for wood molds with steel nails and hard non-metal materials, ensuring stable cutting and longer spindle life.
Q6: Is the SF Series considered a CNC router or a machining center?
The SF Series is positioned as a gantry mold machining center, combining the flexibility of a CNC router with the rigidity and accuracy of a machining center, ideal for precision non-metal mold production.
Q7: What industries commonly use the SF Series gantry CNC router?
The SF Series is widely used in: Foundry Mold Manufacturing, Sand Mold Production, Lost Foam Mold Making, Wood Mold Manufacturing, Sculpture Manufacturing, Landscape & Outdoor Sculpture, Precision Non-Metal Mold Production
