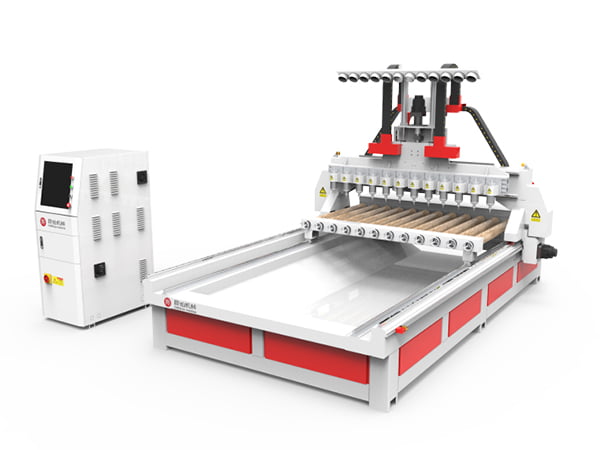

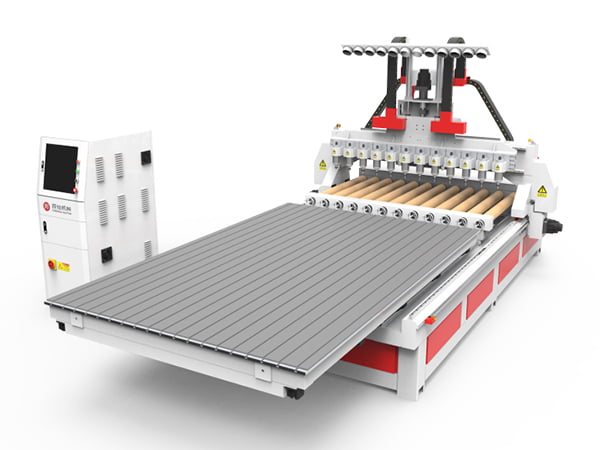

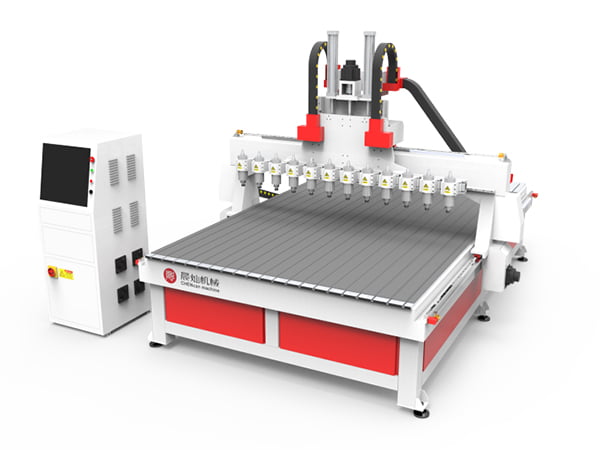

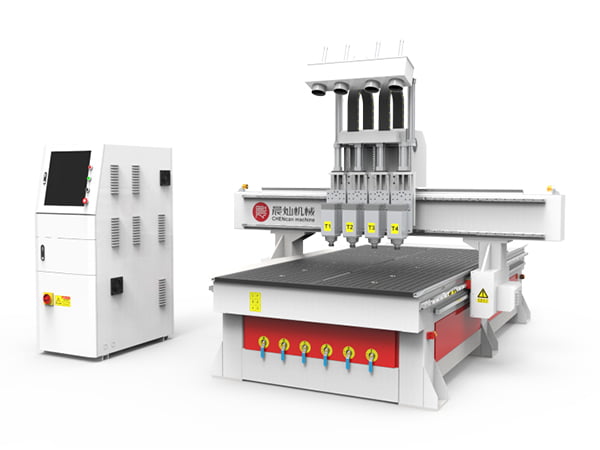

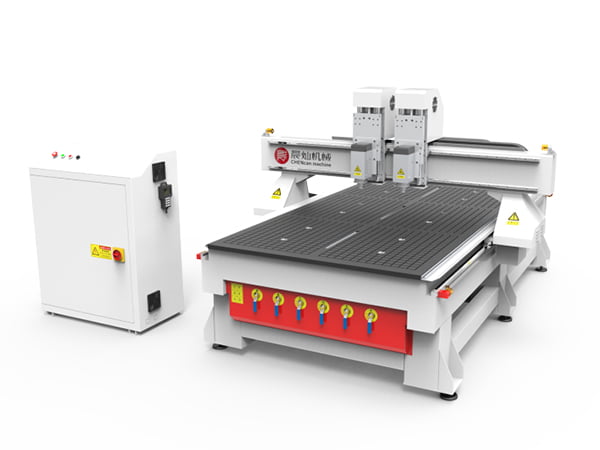

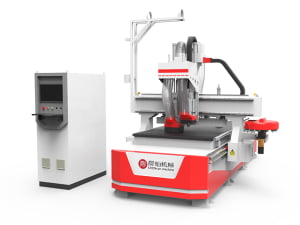

The Multi-Head CNC Router is a high-efficiency CNC routing solution designed for batch production of identical parts.
Equipped with multiple spindles working simultaneously, this CNC router machine can dramatically increase productivity while maintaining consistent machining quality.
Depending on production requirements, the machine can be configured with 2, 4, 6, 8, 10 or 12 spindles, making it an ideal choice for large-volume woodworking and decorative manufacturing.
Technical Parameter of Multi Spindle CNC Router:
| Item | Value |
|---|---|
| Lathe structure | Strong heavy Seamless welded steel structure |
| XY Structure | Rack and pinion transmission,Taiwan square Guide rail |
| Z Structure | Taiwan Ball screw, Taiwan square Guide rail |
| Spindle | 2.2Kw-6KW air cool spindle |
| Spindle speed | 0-18000mm/min, variable speed |
| Rotary | Optional |
| Max. Idling Speed | 35m/min |
| Diameter of cutter | 3.175mm-12.7mm |
| Motor and Driver | China Easy servo Motor and Driver |
| Control System | Weihong NK105G2 controller |
| Worktable | Aluminum T Slot Table |
| Cable | Germany Igus Cable |
| Command | G code (HPGL,U00,mmg,plt) |
| Software | Artcam,Type3,Wentai |
| Oil Injection | Manual |
| Working Voltage | AC220V/AC380V |
Key Features of Mulit Spindle CNC Router：
1. Multiple Spindles for Simultaneous Machining: Multiple spindles operate at the same time to process identical workpieces, significantly improving production efficiency.
2. Flexible Spindle Quantity Options: Available in 2 / 4 / 6 / 8 / 10 / 12-head configurations, allowing users to choose the most suitable setup based on output needs.
3. Stepper or AC Servo Drive System: Depending on the number of spindles and performance requirements, the machine can be equipped with either a stepper motor system or AC servo drive for higher precision and stability.
4. Optional Rotary Axes for Cylindrical Machining: By adding corresponding rotary axes, the machine can process round and cylindrical workpieces, expanding its application beyond flat panels.
5. Stable and Rigid Machine Structure: Heavy-duty welded steel frame ensures long-term stability and reliable performance during continuous batch production.
6. Ideal for Furniture & Decoration Industry: This CNC router machine is especially popular in furniture manufacturing and interior decoration, where large quantities of identical parts are required.

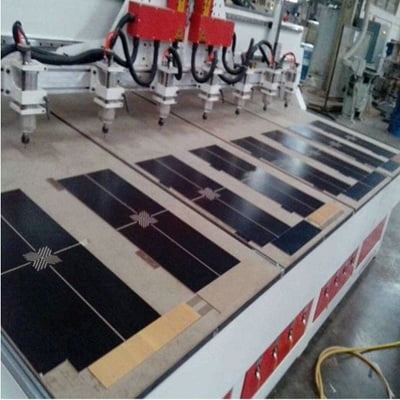

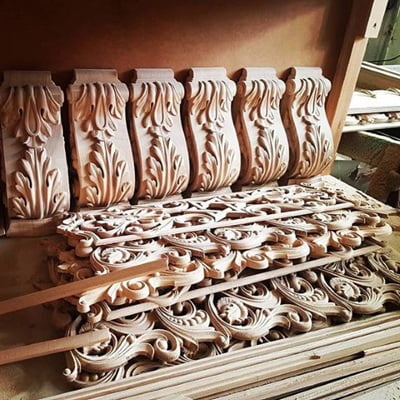

Applications of multi-spindle CNC router is widely used in:
1. Furniture manufacturing.
2. Interior decoration and renovation.
3. Cabinet doors and panels.
4. Wooden crafts and components.

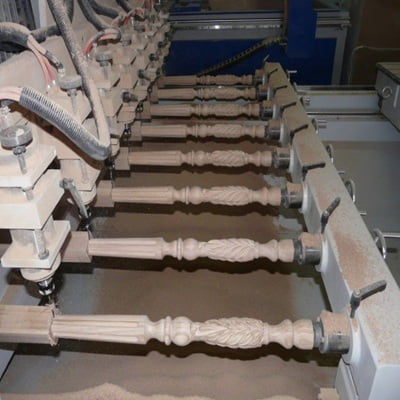

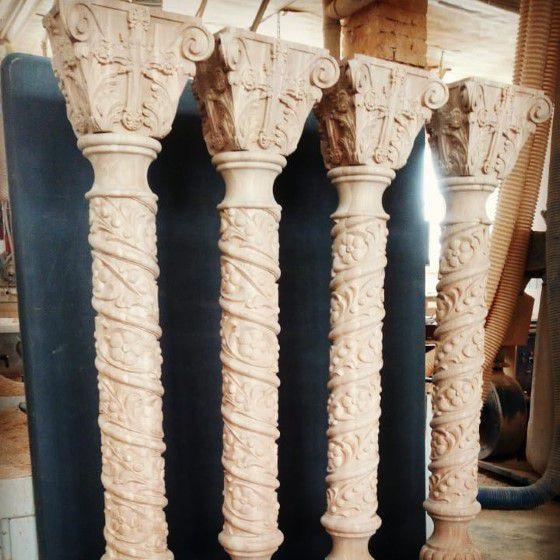

5. Cylindrical wood products (with rotary axis).
6. Advertising and signage production.
Why Choose a Multi-Head CNC Router?
Compared with single-spindle CNC routers, a multi-head CNC router machine can multiply output without increasing floor space or labor cost, making it a cost-effective solution for mass production.
FAQ – Multi-Head CNC Router
Q1: What is a multi-head CNC router used for?
A multi-head CNC router is used to machine multiple identical parts at the same time, greatly improving production efficiency.
Q2: How many spindles can this CNC router have?
The machine can be configured with 2, 4, 6, 8, 10 or 12 spindles, depending on customer requirements.
Q3: Can I choose between stepper motors and servo motors?
Yes. For smaller configurations, stepper motors are cost-effective, while AC servo systems are recommended for higher precision and larger spindle quantities.
Q4: Can this machine process cylindrical workpieces?
Yes. By adding rotary axes, the multi-head CNC router can machine round and cylindrical materials.
Q5: What materials can be processed?
Mainly wood, MDF, plywood, PVC, acrylic and other non-metal materials.
Q6: Is this CNC router suitable for furniture manufacturing?
Yes. It is one of the most popular CNC router machines for furniture and decoration industries due to its high efficiency and batch processing capability.
Q7: Can the machine be customized?
Yes. Working size, spindle quantity, drive system and rotary axis configuration can all be customized.
