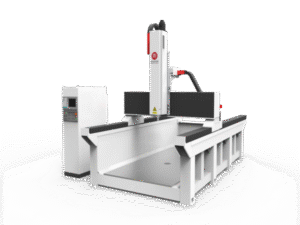

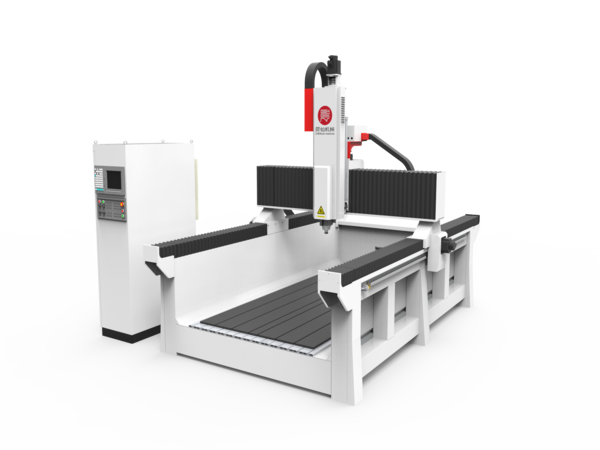

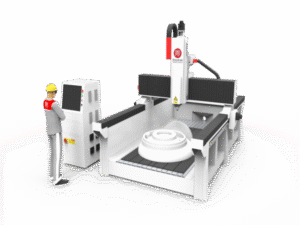

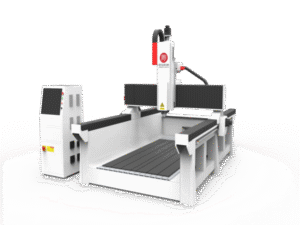

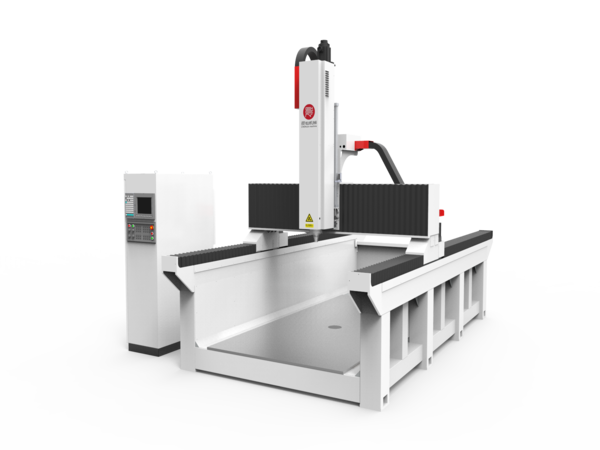

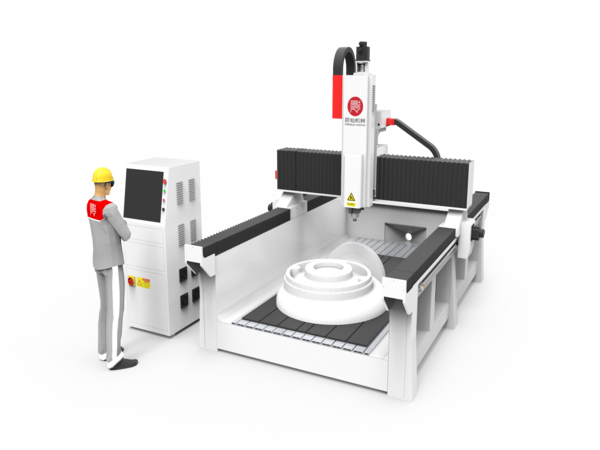

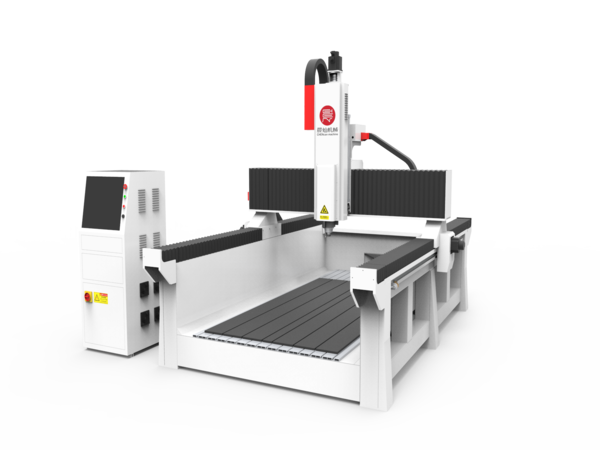

The BS Series cnc machine is a cost-effective gantry CNC router designed for non-metal mold making. It is ideal for foam, MDF and wood molds, widely used in sculpture manufacturing, lost foam patterns and wooden mold production.
Optimized for applications where high efficiency and stable performance are required, the BS Series focuses on practical machining capability rather than ultra-high precision. This makes it an ideal entry-level CNC router for customers entering the mold and sculpture manufacturing field with controlled investment.
Key Features of BS Series Mold Making Machine:
1. Optimized for Soft Materials: Designed for foam, MDF, soft wood and similar materials, delivering smooth surface finish and stable cutting performance.
2. U-Type Gantry Structure: The rigid U-shaped gantry design improves Z-axis rigidity and stability, ensuring reliable performance during long-time CNC routing.
3. BT40 High-Speed Motorized Spindle: Equipped with a BT40 high-speed spindle, providing efficient material removal and better surface quality for soft material mold machining.
4. Cost-Effective Entry-Level Solution: Balanced configuration offers an excellent performance-to-cost ratio, ideal for workshops and manufacturers seeking an economical mold machining solution.
5. Capable of Harder Non-Metal Materials: The machine can also process harder non-metal materials with reduced cutting speed and shallower cutting depth.
Technical Specification of BS Gantry CNC Router:
| Project | Item | Value |
| Spindle | Type | Electronic Spindle BT40 |
| Spindle Power | 7.5Kw | |
| Max. Speed | 20000rpm | |
| Max. Tool Diameter | 32mm | |
| Max. Tool Length | 300mm | |
| Control System | Taiwan Syntec Controllor | Optional: HNC Controllor |
| Taiwan Syntec Servo System | Match with controllor | |
| Speed | Max. Working Speed XYZ | 20m/20m/8m |
| Max. Rapid Speed XYZ | 40m/40m/15m | |
| Accuracy | Positioning Accuracy (XYZ /min) | 0.1/0.1/0.08mm |
| Repeatabiliy Accuracy (XYZ /min) | 0.08/0.08/0.06mm | |
| Others | Air Pressure | 0.6-0.8 kgf/cm2 |
| Total Power | 20KVA | |
| Voltage | 220V 3P / 380V 3P |
Why Choose BS Series CNC Router?
1. The BS Series Mold Machining Center is a reliable and easy-to-operate gantry CNC router for non-metal molds.
2. It offers a practical balance between performance and cost, making it a popular choice for entry-level users and small to medium-scale production.
FAQ – BS Series CNC Router
Q1: What materials can the BS Series CNC router machine?
It is designed for foam (EPS / PU), MDF, soft wood, cork and resin boards. Harder non-metal materials can also be machined with reduced cutting parameters.
Q2: Is the BS Series suitable for metal machining?
No. The BS Series is a non-metal mold CNC router, optimized for efficiency, surface finish and cost control rather than metal cutting.
Q3: What applications is this CNC router used for?

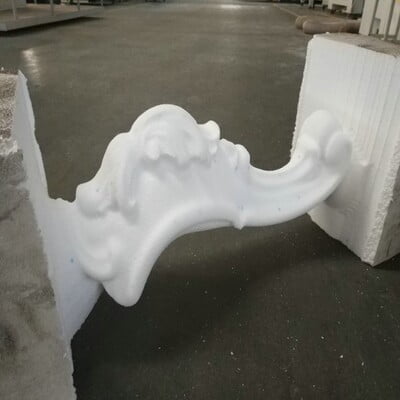

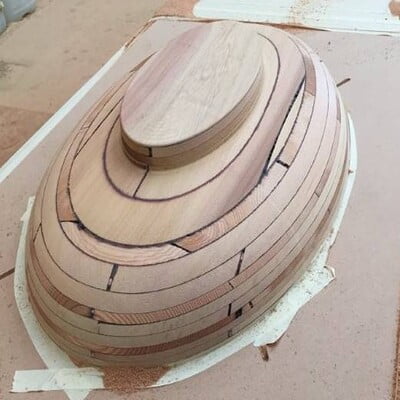

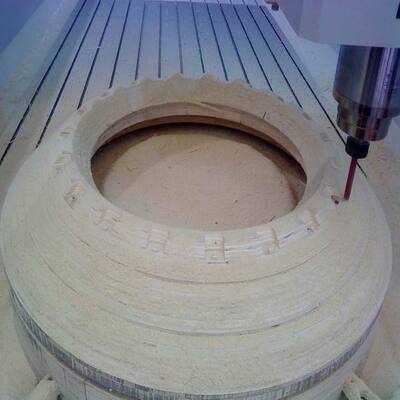

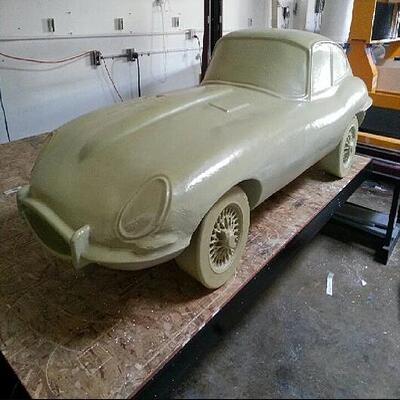

It is widely used for lost foam molds, wooden molds, sculpture molds, pattern making, and model & prototype molds.
Q4: Why is the BS Series a cost-effective mold machining solution?
The combination of a rigid U-type gantry structure, BT40 spindle, and simplified configuration makes it an entry-level CNC router with high value.
Q5: How does the U-type gantry structure help mold machining?
It improves Z-axis rigidity and long-term stability, which is critical for large mold machining and continuous CNC routing.
Q6: Can it achieve good surface finish on foam and wood molds?
Yes. The high-speed BT40 spindle ensures smooth surface quality on foam, MDF and wood molds.
Q7: Is this CNC router suitable for beginners or small workshops?
Yes. The BS Series is an entry-level gantry CNC router, ideal for beginners and workshops starting non-metal mold production.
