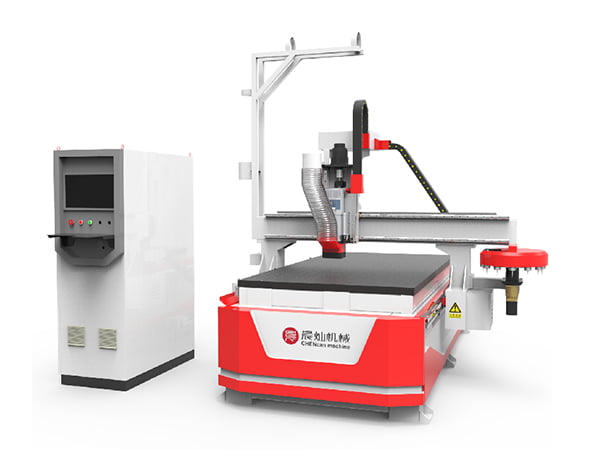

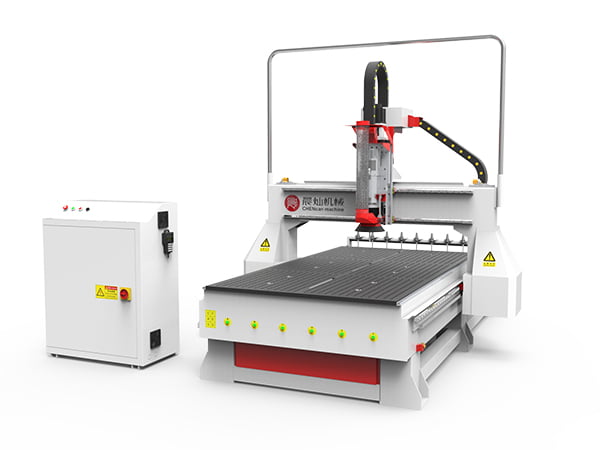

The ATC CNC Router is an advanced version of the standard 3-axis CNC router, designed for users who require higher automation, faster production efficiency and multi-tool processing.
Compared with a conventional CNC router machine, the biggest advantage of this model is the automatic tool changing (ATC) function, which significantly reduces manual intervention and machining time, making it ideal for batch production and complex machining tasks.
Technical Parameter of ATC Woodworking CNC Router:
| Item | Value |
|---|---|
| Lathe structure | Strong heavy Seamless welded steel structure |
| XY Structure | Rack and pinion transmission,Taiwan square Guide rail |
| Z Structure | Taiwan Ball screw, Taiwan square Guide rail |
| Spindle | 9KW air cool spindle |
| Spindle speed | 0-24000mm/min |
| Tool Magaine | Linear Type Tool Magazine |
| Tool Calibration | Yes, with Tool Sensor |
| Max. Idling Speed | 35m/min |
| Diameter of cutter | 3.175mm-12.7mm |
| Inverter | 11kw |
| Motor and Driver | AC Servo |
| Control System | Weihong NK105G3 |
| Worktable | Aluminum T Slot Table |
| Cable | Germany Igus Cable |
| Command | G code (HPGL,U00,mmg,plt) |
| Software | Artcam,Type3,Wentai |
| Oil Injection | Atuo |
| Working Voltage | AC220V/AC380V |
Key Features of ATC CNC Router
1. High-Power 9 kW ATC Spindle: Equipped with a 9 kW automatic tool change spindle, providing strong cutting capability and stable performance for demanding machining tasks.
2. Automatic Tool Changing System: Supports both linear ATC tool magazine and carousel (disc) ATC tool magazine, enabling fast and reliable automatic tool changes during machining.
3. Higher Automation & Productivity: Automatic tool changing allows multiple machining processes—such as cutting, drilling, engraving and grooving—to be completed in one setup, greatly improving efficiency.
4. Rigid Machine Structure: Built with a heavy-duty welded steel frame, ensuring high rigidity and long-term machining stability.
5. High-Speed Transmission System: X and Y axes adopt rack and pinion drive, while the Z axis uses a high-precision ball screw, balancing speed and accuracy.6. Imported Linear Guide Rails: High-quality square linear guide rails provide smooth movement, high load capacity and long service life.
Applications of ATC CNC router machine is widely used in industries that require multiple tools to complete one job:
1. Woodworking and furniture manufacturing.
2. Cabinet doors and panel furniture.
3. Advertising and sign making.
4. Decorative panels and wall cladding.
5. Mold and pattern processing.
6. General non-metal material machining.
Why Choose an ATC CNC Router?
1. The ATC CNC router machine is the ideal solution for manufacturers who need to process complex designs with multiple tools.
2. By eliminating manual tool changes, it delivers higher consistency, better efficiency and reduced labor cost, making it a smart upgrade from standard CNC routers.
FAQ – ATC CNC Router
Q1: What is the main difference between an ATC CNC router and a standard CNC router?
The key difference is the automatic tool change function, which allows the machine to switch tools automatically without manual intervention.
Q2: What types of tool magazines are available?
This machine supports both linear ATC tool magazines and carousel (disc) ATC tool magazines, depending on production requirements.
Q3: What materials can this ATC CNC router process?
It is suitable for wood, MDF, plywood, acrylic, PVC, plastics and other non-metal materials.
Q4: Who should choose an ATC CNC router?
This machine is ideal for users who need multiple tools in one job, batch production, or higher automation and productivity.
Q5: Is the ATC CNC router more expensive than a standard CNC router?
Yes, the initial cost is higher, but it significantly reduces processing time and labor cost, offering better long-term efficiency and return on investment.
Q6: Can this ATC CNC router be customized?
Yes. Tool magazine type, table size and other configurations can be customized according to specific production needs.
