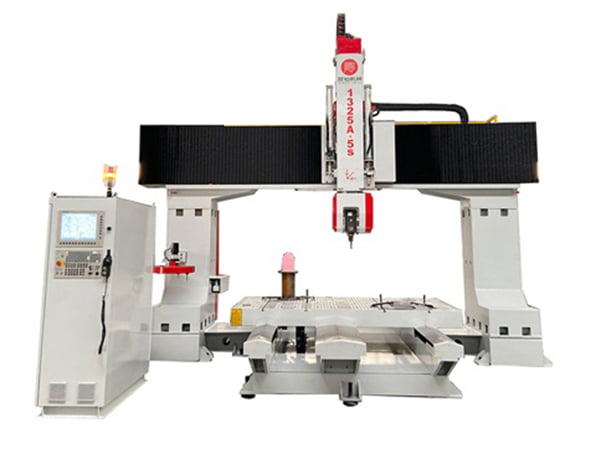

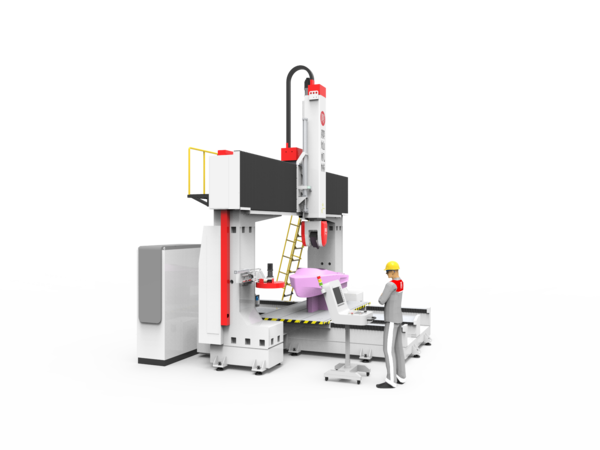

The 5-Axis Machining Center is a high-precision CNC router designed primarily for non-metal materials and complex 3D machining applications. It is widely used in industries where precision, flexibility, and surface quality are critical.
In many industries, this machine is commonly referred to as a 5-axis CNC router, especially when used for model making, composite trimming, and high-finish surface processing.
With true 5-axis simultaneous machining capability, this machine enables one-time forming of complex geometries, delivering excellent accuracy, smooth surface finish, and high production efficiency.
Key Features of 5 Axis CNC Router
1. True 5-Axis CNC Router with RTP Function: This is a real 5-axis machining center, equipped with RTP (Rotating Tool Point) control, allowing automatic tool tip following. It significantly simplifies programming and operation, especially for complex curved surfaces and free-form models.

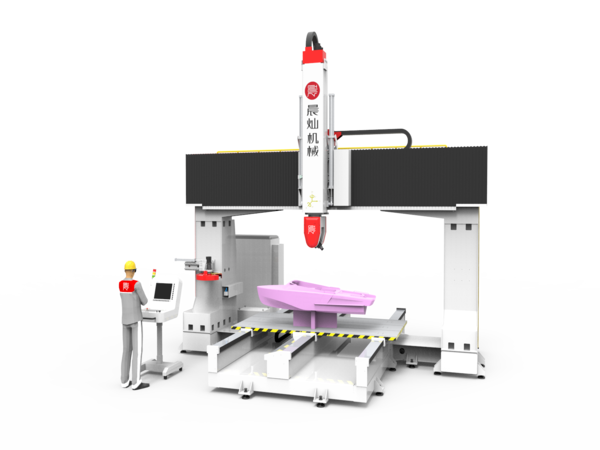

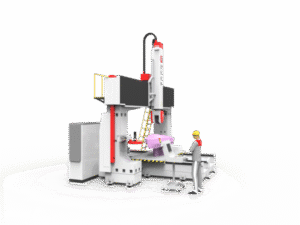

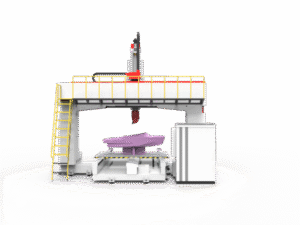

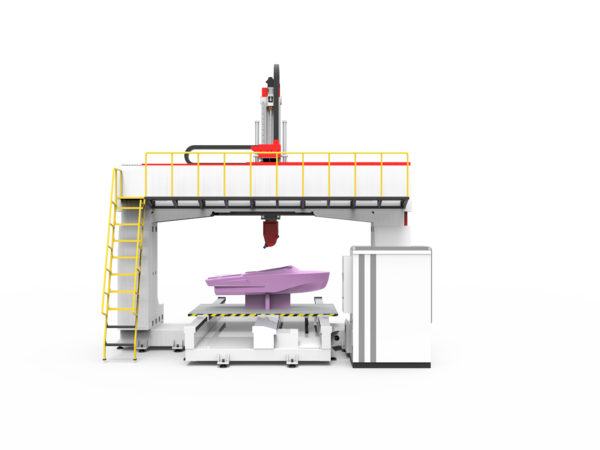

2. Table Moving, Fixed Gantry Design structure ensures: Compact footprint, Stable machining accuracy, Long-term precision retention. This design is ideal for workshops with limited space while maintaining high rigidity.
3. Equipped with a HKS63F high-speed mechanical spindle: High torque output, Excellent surface finish, Stable performance during continuous machining. It is especially suitable for non-metal materials requiring smooth surface quality.
4. All three linear axes adopt high-precision ball screw transmission, offering: Fast positioning speed, High machining accuracy, Easy maintenance and long service life, Flexible Workpiece Fixing Options.
5. Available with Vacuum table or T-slot table: Different fixtures can be selected according to workpiece shape and size, improving clamping efficiency and machining stability.
6. Automatic Tool Changer (ATC): The carousel-type tool magazine enables fast and reliable automatic tool changing, improving productivity in multi-process machining.
Techncial Specificaiton of 5 Axis CNC Machine:
| Project | Item | Value |
| Spindle | Spindle Type | Italy Imported HSK 63F Spindle |
| Spindle Power | 15KW | |
| Max. Speed | 24000rpm | |
| Max. Tool Diameter | 32mm | |
| Max. Tool Length | 300mm | |
| Control System | China HNC CNC Controllor with RTCP | Optional: Syntec / Siemens |
| China HNC Servo System | Match with controllor | |
| Speed | Max. Working Speed (XYZ /min) | 30m/30m/15m |
| Max. Rapid Speed (XYZ /min) | 60m/60m/20m | |
| Accuracy | Positioning Accuracy (XYZ mm/m) | 0.05/0.05/0.03mm |
| Repeatabiliy Accuracy (XYZ mm/m) | 0.03/0.03/0.025mm | |
| Others | Air Pressure | 0.6-0.8 kgf/cm2 |
| Total Power | 38KVA | |
| Voltage | 220V 3P / 380V 3P |
Why Choose This 5-Axis CNC Router?
1. True 5-axis simultaneous machining for complex models.
2. Excellent surface finish for high-end applications.
3. Compact structure with stable precision.
4. Widely used across aerospace, automotive, sanitary ware, and composite industries.
5. Ideal for manufacturers seeking a high-precision non-metal 5-axis machining solution.
6. This machine is a reliable choice for customers looking to upgrade from traditional 3-axis or 4-axis CNC routers to advanced 5-axis machining with higher accuracy and flexibility.
7. It is particularly effective for high-precision surface machining, trimming, drilling, and contour cutting of complex shapes.
FAQ of 5-Axis CNC Router / Machining Center:
Q1: Is this a real 5-axis machining center or a 5-axis CNC router?
This machine is a true 5-axis machining center, capable of simultaneous 5-axis interpolation.
It is often called a 5-axis CNC router by customers because it is mainly used for non-metal materials, models, and composite trimming, but its structure and control system are industrial-grade.
Q2: What materials can this 5-axis CNC router machine?
This 5-axis machining center is mainly designed for non-metal materials, including: Foam (EPS / PU), MDF and wood, Resin boards, Composite materials (FRP, GFRP, CFRP), Plastics and engineering plastics
Q3: What industries commonly use this 5-axis CNC router?
Typical Applications, this 5-axis CNC router is suitable for a wide range of precision non-metal applications, including but not limited to:

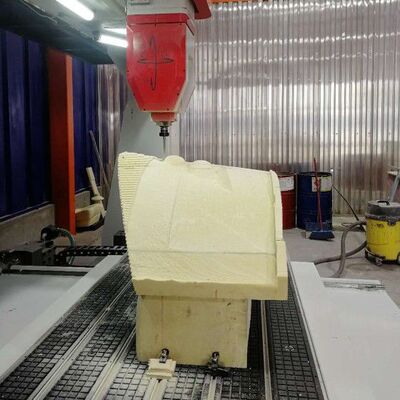

1. Aerospace model manufacturing.

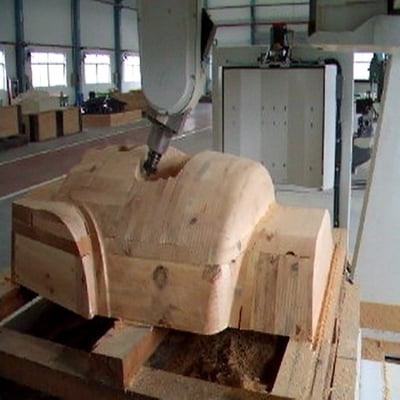

2. Automotive prototype and component models.
3. Bathtub and sanitary ware molds.
4. Investment casting and precision casting patterns.
5. Composite material trimming, cutting, and drilling.
6. Vacuum-formed product trimming (e.g. bathtub edge trimming, hole drilling).

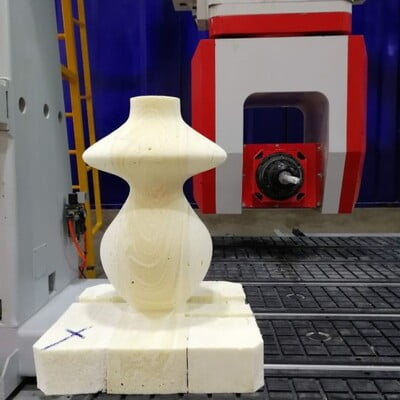

7. Industrial design models and complex sculptures.
8. Thanks to its high accuracy and true 5-axis capability, the application range extends far beyond the examples above, making it an ideal solution for any industry requiring complex shapes and high-precision machining.
Q4: Can this 5-axis machine perform trimming and drilling on composite products?
Yes.This 5-axis CNC router is highly suitable for composite.
Q5: What is RTP function and why is it important?
RTP (Rotating Tool Point) function allows the control system to automatically maintain the correct tool tip position during axis rotation.
It could Simplifies programming, Reduces programming errors, Improves machining accuracy. This is especially important for 5-axis surface machining and complex model processing.
Q6: Is this machine suitable for one-time forming of complex models?
Yes. With true 5-axis simultaneous machining, complex models can be completed in one setup, reducing: Repositioning errors, Manual finishing, Overall machining time. This greatly improves efficiency and surface consistency.
