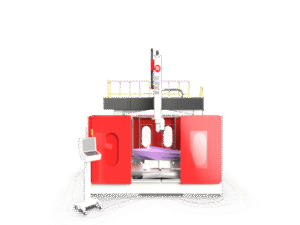

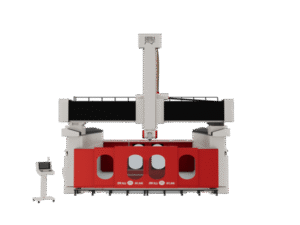

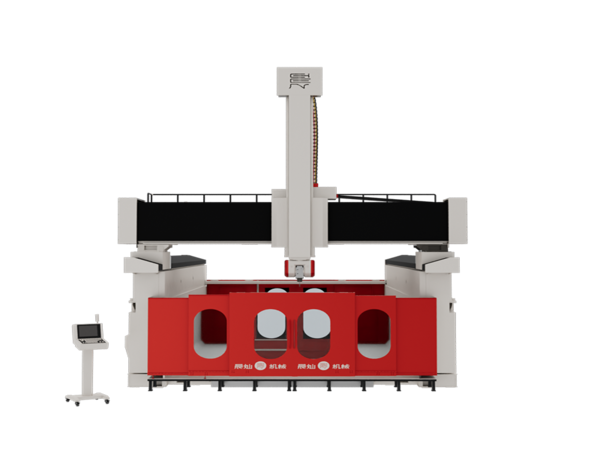

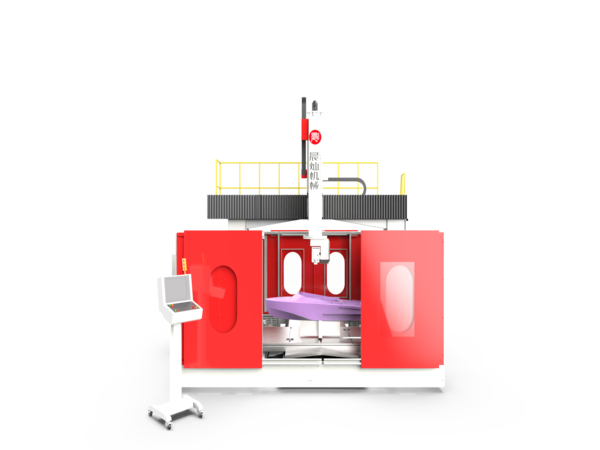

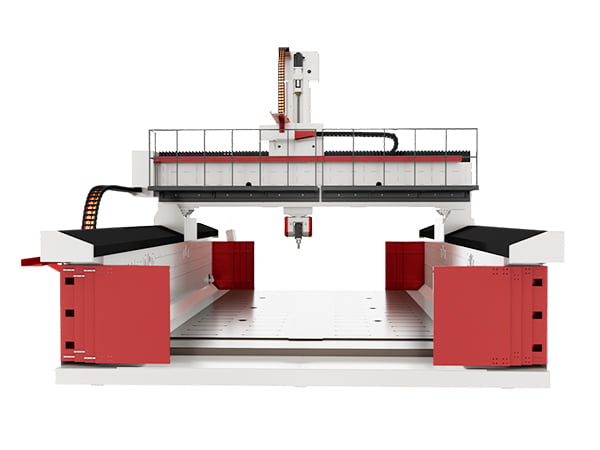

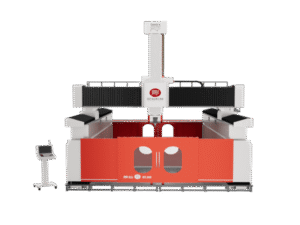

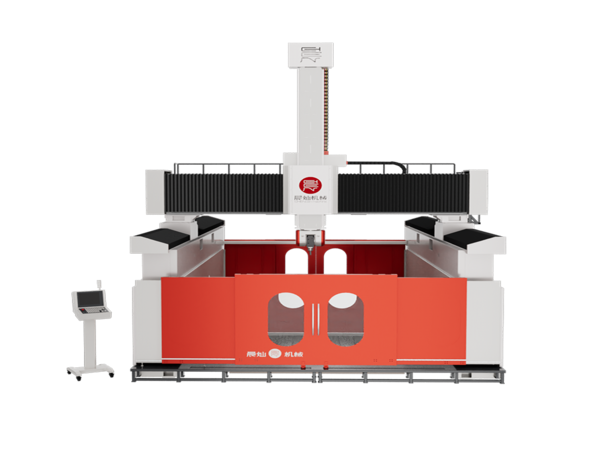

The 5-Axis Gantry Moving Machining Center is a large-format, high-precision 5-axis CNC router designed for non-metal materials and large complex models.
Compared with table-moving 5-axis machines, this model adopts a gantry moving structure, enabling larger working sizes, higher rigidity, and better long-term accuracy retention.
This machine is widely referred to as a 5-axis CNC router by customers, especially in industries such as model making, architectural design, and composite processing. With true 5-axis simultaneous machining capability, it allows one-time forming of large and complex models with excellent surface quality
Key Features of Large-Scale 5-Axis CNC Router:
1. Gantry Moving Structure for Large-Scale Machining design offers: Larger machining size compared to table-moving 5-axis machines， Excellent rigidity for large workpieces, Stable accuracy during long-term and heavy machining
2. This structure is especially suitable for large models and oversized molds.
3. rue 5-Axis Machining with RTP Function: This is a real 5-axis machining center with simultaneous 5-axis interpolation.
The integrated RTP (Rotating Tool Point) function automatically maintains tool tip position, making: Programming easier, Operation more intuitive, Machining more accurate
4. HKS63F High-Speed Mechanical Spindle: Equipped with HKS63F high-speed mechanical spindle, featuring High torque output, Smooth surface finishing, Stable performance for long machining cycles. Ideal for non-metal and composite materials requiring fine surface quality.
5. High-Precision Ball Screw Drive System: All three linear axes adopt high-precision ball screw transmission, ensuring: Fast positioning speed, High machining accuracy, Easy maintenance and long service life.
6. This flexibility allows better support for different workpiece sizes, weights, and fixing methods.
7. Large-Capacity Linear Tool Magazine: The linear-type tool magazine supports more tools, making it suitable for: Complex multi-process machining, Large models with multiple tool changes, Continuous production with reduced downtime.
Tehnical Specificaiton of 5-Axis CNC Router:
| Project | Item | Value |
| Spindle | Spindle Type | Italy Imported HSK 63F Spindle |
| Spindle Power | 15KW | |
| Max. Speed | 24000rpm | |
| Max. Tool Diameter | 32mm | |
| Max. Tool Length | 300mm | |
| Control System | China HNC CNC Controllor with RTCP | Optional: Syntec / Siemens |
| China HNC Servo System | Match with controllor | |
| Speed | Max. Working Speed (XYZ /min) | 35m/35m/15m |
| Max. Rapid Speed (XYZ /min) | 60m/60m/20m | |
| Accuracy | Positioning Accuracy (XYZ mm/m) | 0.05/0.05/0.03mm |
| Repeatabiliy Accuracy (XYZ mm/m) | 0.03/0.03/0.025mm | |
| Others | Air Pressure | 0.6-0.8 kgf/cm2 |
| Total Power | 58KVA | |
| Voltage | 220V 3P / 380V 3P |
FAQ – 5-Axis Gantry CNC Router:
Q1: Is this a real 5-axis machining center or a CNC router?
This machine is a true 5-axis machining center with simultaneous 5-axis control. It is often called a 5-axis CNC router because it is mainly used for non-metal materials and model machining.
Q2: What is the difference between gantry moving and table moving 5-axis machines?
A gantry moving 5-axis machine offers: Larger machining size, Better suitability for large and heavy workpieces, More stable accuracy for oversized models, while gantry moving designs are ideal for large-scale machining.
Q3: What materials can this 5-axis CNC router machine?

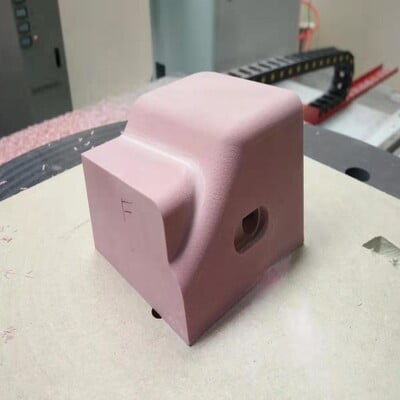

It is mainly designed for non-metal materials such as: Foam, MDF and wood, Resin, Plastics, Composite materials and so on. It excels in applications requiring high surface quality and complex shapes.
Q4: What industries commonly use this gantry 5-axis CNC router?
Typical industries include: Aerospace model manufacturing, Automotive design and styling, Architectural model and facade design, Precision casting pattern making, Industrial design and sculpture
Q5: What spindle does this machine use?
The machine is equipped with a HKS63F high-speed mechanical spindle, providing high torque and excellent surface finish for non-metal machining.
Q6: What is RTP function and why is it important?
RTP (Rotating Tool Point) allows the machine to automatically track the tool tip during axis rotation, simplifying programming and improving accuracy in 5-axis machining.
Q7: Can this machine be customized?
Yes. The machine can be customized in terms of: Spindle, 5-Axis Head, Working size, Table type (Cast Iron or Steel), Control system, Tool magazine capacity.
