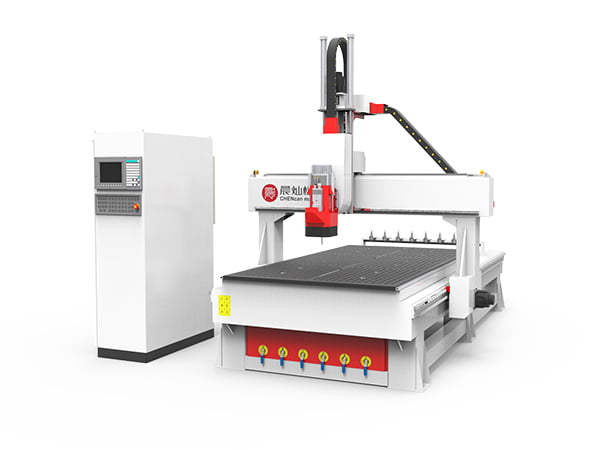

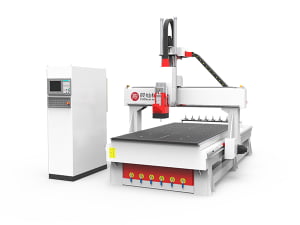

The 4 Axis CNC Router is a powerful and flexible CNC routing solution designed for complex surface machining and side-edge processing.
Compared with standard 3-axis CNC router machines, this model features a rotating spindle that can swing left and right, enabling true 4-axis machining capability.
Combined with a 9 kW ATC spindle and a linear automatic tool changer, this machine delivers both high efficiency and advanced machining flexibility, making it ideal for demanding CNC routing applications.
Technical Parameter of 4 Axis CNC Router:
| Item | Value |
| Lathe structure | Strong heavy Seamless welded steel structure |
| XY Structure | Rack and pinion transmission,Taiwan square Guide rail |
| Z Structure | Taiwan Ball screw, Taiwan square Guide rail |
| Spindle | 9KW air cool spindle |
| Spindle speed | 0-24000mm/min |
| Spindle Rotate | 0-180° |
| Inverter | 11kw |
| Tool Magaine | Linear Type Tool Magazine |
| Tool Calibration | Yes, with Tool Sensor |
| Max. Idling Speed | 50m/min |
| Diameter of cutter | 3.175mm-12.7mm |
| Working Voltage | AC220V/AC380V |
Key Features of 4-Axis ATC CNC Router
1. 4-Axis Spindle with Left & Right Rotation: The spindle can rotate left and right, allowing machining on inclined surfaces and side edges without repositioning the workpiece.
2. 9 kW ATC Spindle for High Performance: Equipped with a 9 kW automatic tool change spindle, providing strong cutting power and stable performance.
3. Linear ATC Tool Magazine: The linear-type automatic tool changer enables fast and reliable tool switching, improving machining efficiency for multi-process jobs.
4. Ideal for Curved and Side Processing: Perfect for complex curved surfaces and jobs that require side cutting, drilling or grooving on panels and workpieces.
5. Rigid Machine Structure: Heavy-duty welded steel frame ensures excellent rigidity and vibration resistance during high-speed machining.
6. High-Precision Transmission System: X and Y axes use rack and pinion drive for speed, while the Z axis adopts a high-precision ball screw for accuracy and smooth motion.
Applications of 4 axis CNC router machine is widely used in industries that require curved surfaces, angled cutting or side machining, such as:
1. Furniture and woodworking.
2. Curved panels and decorative components.
3. Cabinet doors with side grooves.
4. Mold and pattern making.
5. Advertising and signage.
6. Non-metal material machining.
Why Choose a 4 Axis CNC Router with ATC?
1. This machine combines the advantages of 4-axis machining and automatic tool changing, offering a significant upgrade over standard CNC router machines.
2. It reduces setup time, improves surface quality and expands machining possibilities for complex designs.
FAQ – 4 Axis CNC Router
Q1: What is the difference between a 3-axis and a 4-axis CNC router?
A 4-axis CNC router allows the spindle to rotate, enabling machining on angled and curved surfaces as well as side edges.
Q2: Is this machine suitable for flat panel processing?
Yes. It performs all standard 3-axis routing tasks while adding the ability to process complex surfaces and side features.
Q3: What materials can this 4 axis CNC router process?
It is suitable for wood, MDF, plywood, acrylic, PVC, plastics and other non-metal materials.
Q4: Does the machine support automatic tool changing?
Yes. It is equipped with a linear ATC tool magazine and a 9 kW ATC spindle for fast and automatic tool changes.
Q5: Who should choose a 4 axis CNC router?
This machine is ideal for users who need to process curved surfaces, angled features or side machining with higher efficiency.
Q6: Can the 4 axis CNC router be customized?
Yes. Working size, spindle configuration and tool magazine capacity can be customized based on production requirements.
