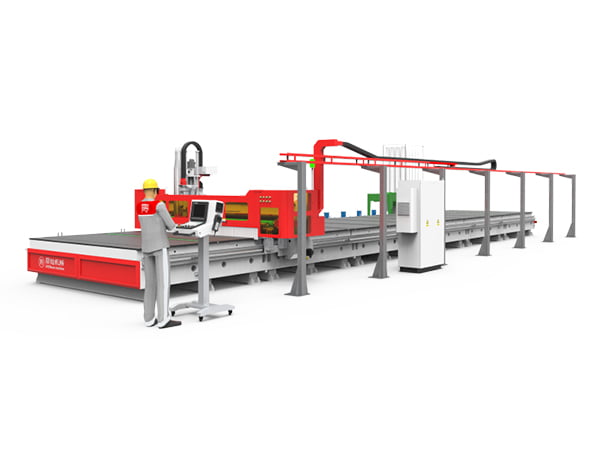

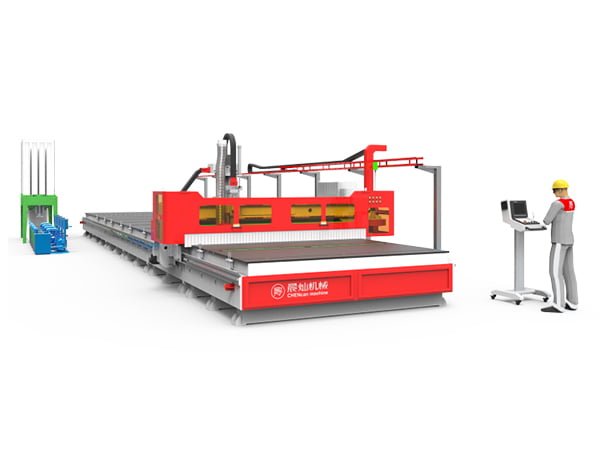

The Composite Sandwich Panel Machining Center (3-Axis Classic Model) is a proven and cost-effective CNC solution designed for processing various sandwich panels and composite boards.
This machine focuses on standard vertical machining operations, offering stable performance, easy operation and high reliability. It is widely used in vehicle body manufacturing and prefabricated building industries, where consistent quality and production efficiency are required.
As a classic 3-axis configuration, it is an ideal choice for customers who do not require 5-axis sawing functions but still need a professional CNC machine for sandwich panel processing.
Key Features of 3-Axis Composite Panel Machining Center
1. Designed as a stable and mature 3-axis machining platform, suitable for vertical cutting, milling, drilling and routing operations on sandwich panels.
2. Equipped with an ISO30 or BT40 high-speed motorized spindle, with a maximum speed up to 24,000 rpm, delivering stable power output and clean cutting performance for composite sandwich panels, wood-based panels and laminated materials.
3. Equipped with a disc-type automatic tool changer, supports multiple machining operations in one setup, including:Vertical cutting, Routing and pocket milling and Recess milling..
4. Optimized machine structure ensures excellent rigidity and stability, especially suitable for large-format panels and long-time production.
5. Full servo-driven axes provide stable motion control, strong driving force and smooth machining, meeting industrial production requirements.
6. Simple mechanical structure and mature technology make the machine easy to operate, maintain and service, ideal for continuous production environments.
7. Compared with 5-axis sandwich panel machining centers, this classic 3-axis model offers a lower investment cost while meeting most standard panel processing needs.
Technical Parameter of Panel Cutting Machine
| Project | Item | Value |
| Spindle | Spindle Type | Mechanical Spindle BT40 |
| Spindle Motor Power | 5.5Kw | |
| Max. Speed | 10000rpm | |
| Tool Magazine | Carosel | With 8 Tool Position |
| Work Table | Vacuum Work Table | 7.5Kw Pump |
| Control System | Taiwan Syntec CNC Controllor | |
| Taiwan Syntec Servo System | Match with controllor | |
| Speed | Max. Working Speed (XYZ /min) | 30m/30m/15m |
| Max. Rapid Speed (XYZ /min) | 55m/55m/20m | |
| Accuracy | Positioning Accuracy (XYZ mm/m) | 0.08/0.06/0.04mm |
| Repeatabiliy Accuracy (XYZ mm/m) | 0.07/0.05/0.03mm | |
| Others | Air Pressure | 0.6-0.8 kgf/cm2 |
| Total Power | 29KVA | |
| Voltage | 220V 3P / 380V 3P |
Typical Materials of sandwich pancing process machine:

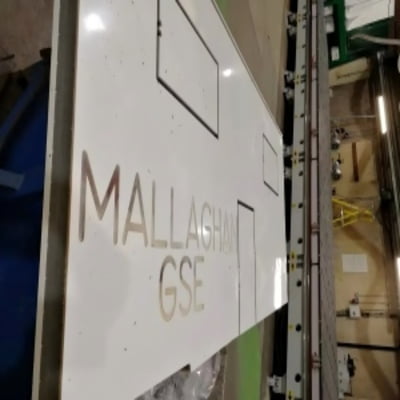

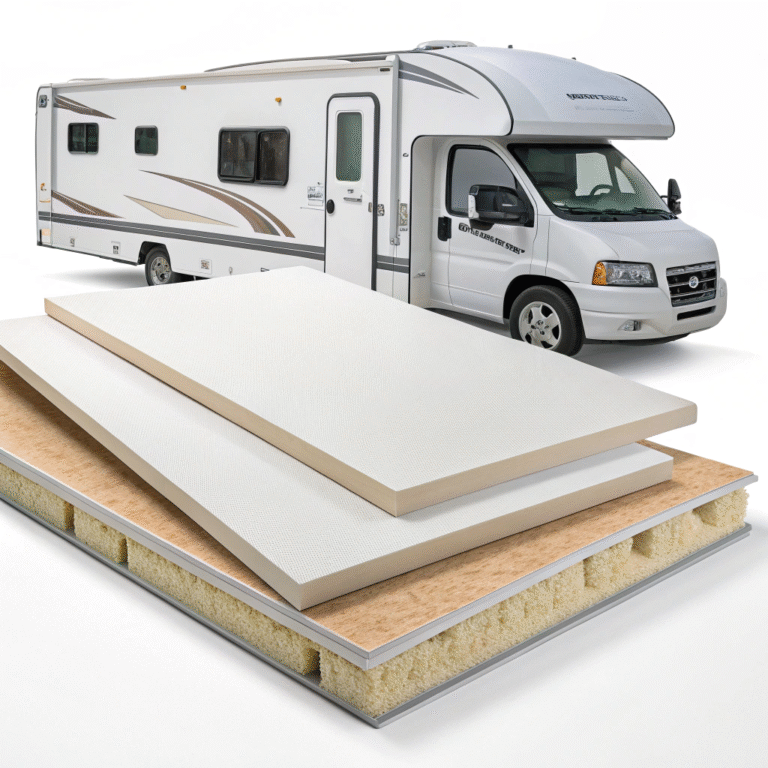

1. Composite sandwich panels
2. Aluminum-skinned sandwich boards
3. Insulated panels
4. Honeycomb panels

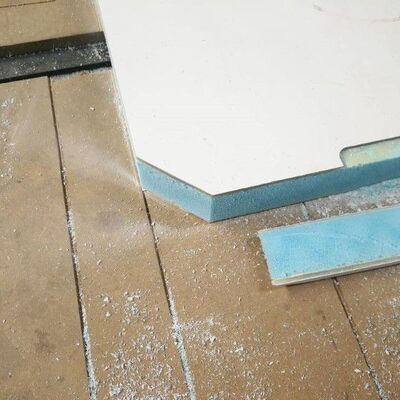

5. Foam core composite panels
Applications of 3-axis sandwich panel machining center:

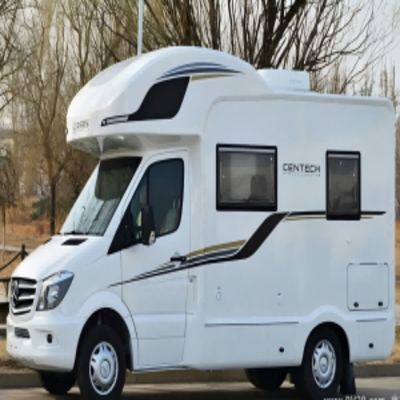

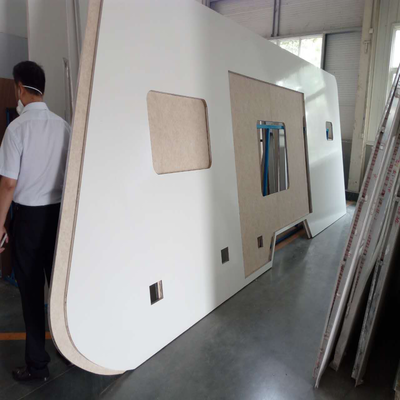

1. RV body manufacturing

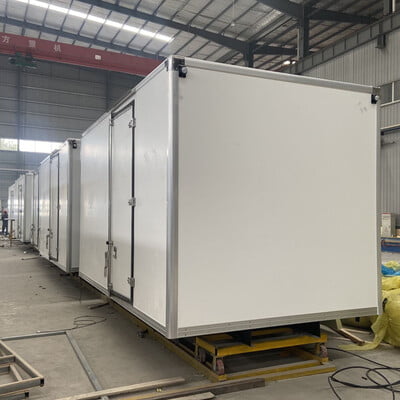

2. Refrigerated truck body manufacturing
3. Cold-chain vehicle panels
4. Insulated wall and roof panels
5. Prefabricated housing & wooden house construction
6. Vehicle interior and enclosure panels
Why Choose This 3-Axis Sandwich Panel Machining Center?
1. Proven and reliable classic design
2. Optimized for sandwich panel processing
3. Lower investment, faster return
4. Ideal for vehicle body and building panel manufacturers
5. Easy integration into existing production lines
FAQ – Composite Sandwich Panel Machining Center (3-Axis)
Q1: What is the difference between this machine and a 5-axis sandwich panel machining center?
This machine is a 3-axis classic model without a 5-axis saw blade. It focuses on vertical machining operations such as routing, drilling and milling, offering a more cost-effective solution for standard panel processing.
Q2: What industries is this CNC machine mainly used in?
It is mainly used in RV body manufacturing, refrigerated truck bodies, cold-chain vehicles, insulated panels, and prefabricated building industries.
Q3: Can this machine process sandwich panels with metal skins?
Yes. With a BT40 high-torque mechanical spindle, the machine can easily handle sandwich panels with aluminum or thin metal skins.
Q4: Is this machine suitable for mass production?
Yes. Its stable structure, servo drive system and mature design make it highly suitable for continuous industrial production.
Q5: Is this model customizable?
Yes. Table size, spindle configuration, tool changer and auxiliary options can be customized based on customer requirements.
