Is the BS Series Gantry CNC Router the Right Choice for Soft Mold Making?

Mold making costs can rise very fast if you choose the wrong equipment. You worry about wasting your budget on machines that are too powerful and expensive for simple foam jobs. You need a balanced solution.

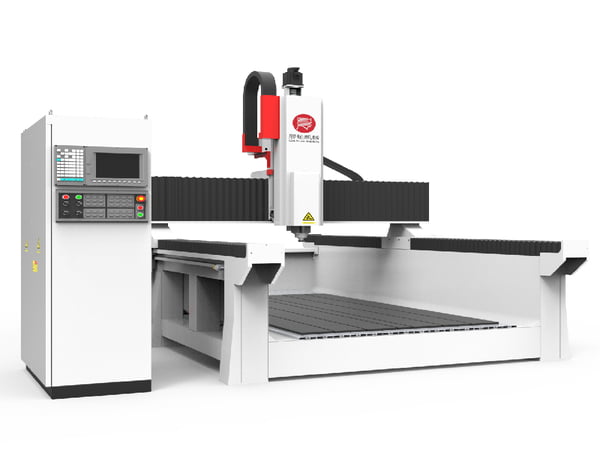

The BS Series Gantry CNC Router is an economic machining center designed specifically for soft materials like foam, MDF, and cork. It features a U-shaped structure for stability and a BT40 high-speed spindle, making it the perfect entry-level choice for lost foam and sculpture applications.

I want to share why this specific machine has become a favorite for our clients. Many customers come to me looking for a way to increase efficiency without spending too much money. They need a machine that works hard but does not cost a fortune.

How Does the U-Shaped Design Improve Stability?

Vibration kills precision when you are making large molds. A shaky Z-axis ruins your surface finish and wastes your expensive material. You need a rigid structure to get good results.

The BS Series utilizes a unique U-shaped design that reinforces the Z-axis. This structural change significantly reduces vibration during tall workpiece machining, ensuring consistent quality even when the machine is extended to its maximum height.

I have seen many standard machines fail when they try to cut tall molds. When the Z-axis goes up high, a standard machine starts to shake. This is physics. The higher you go, the less stable it becomes. At Chencan Machinery, we solved this with the BS Series U-shaped design.

The Logic Behind the U-Shape

The U-shape acts like a strong arm holding the spindle. It wraps around the column. This keeps the center of gravity closer to the guide rails. I explain this to my customers often. It is like holding a heavy box close to your chest instead of with your arms straight out. It is much more stable.

Stability Comparison

I have listed the differences below to help you see the value:

This design is very important for mold making. Molds are often deep. You need a long tool to reach the bottom. A long tool and a high Z-axis usually mean bad vibration. The U-shape fixes this. It allows you to use the machine for large foam blocks without fear. We have tested this design for years. It is a simple change that makes a huge difference in your daily work.

Why Is the BT40 High-Speed Spindle Critical for Soft Materials?

Rough surfaces on foam molds require hours of manual sanding. This slows down your production and hurts your profit margins. You need a cleaner cut right from the machine.

The BT40 high-speed spindle provides the high RPMs necessary to slice through soft materials cleanly rather than tearing them. This results in a superior surface finish directly off the machine, drastically reducing the need for manual post-processing.

I often talk to mold engineers who are tired of sanding. They spend hours smoothing out rough foam after the machine is done. This is a waste of time. The problem is usually the spindle speed. Soft materials like foam and cork are different from steel. You do not need massive torque. You need high speed.

The Science of Cutting Soft Materials

When you cut foam slowly, the tool tears the material. It leaves small chunks hanging off. This looks bad. When you use the BT40 high-speed spindle on our BS Series, the tool slices. It is like using a sharp knife versus a dull spoon. The high RPM creates a polished look.

Spindle Performance Breakdown

Here is how the BT40 helps with different aspects of the job:

Surface Treatment Benefits

The BT40 is standard on this machine for a reason. It gives the best surface treatment for these specific materials. I tell my clients that this feature alone saves labor costs. You do not need to pay a worker to sand the mold for two days. The machine does 90% of the work. This makes your delivery time faster. In the mold business, speed is money. The BS Series helps you keep that money.

What Projects Are Best Suited for the BS Series?

Buying a metal-cutting machine for foam is a waste of money. You lose return on investment when your equipment is over-qualified for the job. You need the right tool for the task.

This machine excels in sculpture manufacturing, large-scale wooden molds, and lost foam casting molds. It is specifically engineered for industries where shape complexity is high, but extreme micron-level tolerance is not the primary requirement.

I always ask my customers what they plan to make. If they say they need engine parts with 0.001mm accuracy, I tell them this is not the machine. But if they make large sculptures or foam molds, the BS Series is the champion. It fits a specific need in the market.

Key Industries

We see three main areas where this machine shines. I have visited factories in over 70 countries, and these are the most common uses:

1. Sculpture Manufacturing: Artists and set designers love this machine. They can scan a small clay model and cut a huge foam statue. The machine handles the complex curves easily.
2. Lost Foam Molds: This is huge for the casting industry. You machine the foam, bury it in sand, and pour metal in. The foam disappears. The BS Series is perfect for this because the foam burns away, so the surface finish of the foam dictates the metal finish.
3. Wooden Molds: For thermoforming or fiberglass layups, wood is a great material. The BS Series cuts MDF and softwoods very fast.

Application Suitability Table

The cost of accuracy is high. If you do not need metal-grade precision, do not pay for it. The BS Series gives you the right accuracy for these jobs. It is precise enough for molds, but cheap enough to make a profit. This is the balance we strive for at Chencan.

Can the BS Series Handle Harder Non-Metal Materials?

Sometimes you need to cut more than just foam. Buying a second machine for occasional hard plastic work is expensive. You want versatility in your workshop.

Yes, the BS Series can machine harder non-metal materials like thick plastics or epoxy tooling board. However, you must reduce the cutting speed and the depth of cut to maintain accuracy and protect the spindle.

My clients often ask if they can cut harder things. They might get a job for a resin fixture or a hard plastic part. I tell them yes, but they must be careful. This machine is a beast with foam, but it needs patience with hard plastics.

Adjusting Your Process

You cannot run the machine at full speed on hard materials. You have to think like a machinist.

• Speed: You must slow down the feed rate.
• Depth: You must take shallower passes. Instead of cutting 20mm deep at once, you might cut 5mm.

Material Compatibility Guide

I created this guide to help you understand the limits:

Why This Versatility Matters

It is great to have a backup. Even if 90% of your work is foam, that 10% of hard material work is profit. You do not have to turn the job away. You do not have to buy another expensive mill. You just adjust your settings on the BS Series. I believe this flexibility makes it a great investment for small to medium shops. It allows you to say "yes" to more customer requests.

Is This the Best Entry-Level Solution for Your Business?

Starting a mold shop is expensive and risky. High capital costs can crush your cash flow before you get your first client. You need a smart investment.

The BS Series is positioned as our most affordable, high-value entry-level machine. It offers the essential professional features of a CNC router without the premium price tag of metal-cutting centers, offering the fastest ROI for soft mold businesses.

I have been in this business since 1998. I have seen companies fail because they bought equipment they could not afford. They bought a Ferrari when they needed a delivery truck. The BS Series is the reliable truck. It gets the work done.

Cost vs. Value

We designed this machine to be "Economic." This does not mean "Cheap" quality. It means we removed the features you do not need for soft materials.

• We use a lighter gantry because foam does not resist the tool like steel does.
• We use the BT40 spindle because it is cost-effective and fast.
• We focus on the U-shape structure for stability without adding tons of heavy cast iron.

ROI Analysis

For a new business or a new department, Return on Investment (ROI) is king.

1. Low Initial Cost: You pay less upfront. This keeps your bank account healthy.
2. Low Operating Cost: The machine uses less power than a heavy metal mill.
3. High Output: It cuts foam fast. You finish jobs quickly.

Comparison to Alternatives

I truly believe the BS Series is the smart choice. It allows you to enter the market of sculpture and mold making with low risk. You can start making money sooner. We have served 12,000 companies. The ones who start smart are the ones who grow big.

Conclusion

The BS Series offers the perfect balance of cost and performance for soft mold making. It is the smart choice for efficient, high-quality foam and wood machining.
